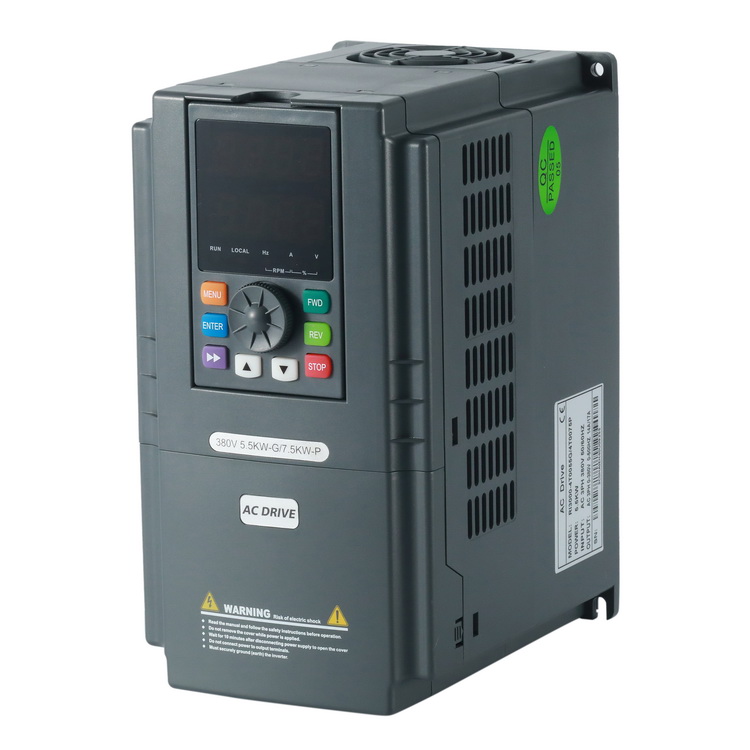

RI3000-4T0015G/4T0022P
RIEVTECH
Availability: | |
---|---|
Quantity: | |
RI3000 series vector control inverter is mainly positioned as a high-end market for OEM customers and the specific requirements of fan and pump load applications, its flexible design, both embedded SVC and VF control in one, can be widely used for speed control accuracy, torque response speed, low- frequency output characteristics and other situations with higher requirements.
RI3000 series vector control inverter is mainly positioned as a high-end market for OEM customers and the specific requirements of fan and pump load applications, its flexible design, both embedded SVC and VF control in one, can be widely used for speed control accuracy, torque response speed, low- frequency output characteristics and other situations with higher requirements.
Items | Specifications | ||
Input | Rated Voltage | Single phase220V, three phase 200V, three phase 380V; 50Hz/60Hz | |
Tolerance | Voltage: ±20% voltage deviation ratio:<3%; frequency: ±5% | ||
Output | Rated voltage | 0~200V/220V/380V/415V/440V | |
Frequency range | 0Hz~500Hz(Standard model) | 0Hz~2000Hz(High speed model) | |
Frequency resolution | 0.01Hz | ||
Overload capability | 150% rated current for1minute, 180% rated current for3 seconds | ||
Control function | Modulation modes | Optimized space voltage vector SVPWM modulation | |
Control mode | Sensorless vector control (with optimal low frequency compensation) | ||
Frequency Accuracy | Digital setting: The highest frequency×± 0.01% Analog setting: The highest frequency ×±0.2% | ||
Frequency resolution | Digital setting: 0.01Hz; Analog setting: The highest frequency× 0.1% | ||
Start frequency | 0.40Hz~20.00Hz | ||
Torque boost | Auto torque boost, manual torque boost 0.1%~30.0% | ||
V/F curve | Five ways: constant torque V/F curve, 1 kind of user defined V/F curve ,3 kinds of down torque curve(2.0/1.7/1.2times the power) | ||
Acc./Dec. curve | Two ways: linear Acc./Dec., S-curve Acc./Dec.;7 kinds of Acc./Dec. time, Time unit (minute/second) optional, max. Time: 6000 mins. | ||
DC braking | DC braking start frequency:0~15.00Hz braking time:0~60.0s braking current:0~80% | ||
Energy consuming braking | Below 22KW drive built-in energy consuming braking unit, external braking resistor is optional. | ||
Jog running | Jog frequency range:0.1Hz~50.00Hz, JOG Acc./Dec. time: 0.1~60.0s | ||
PID built-in | Easily constitute a close loop control system | ||
Multi-stage speed running | Multi-stage speed running available through built-in PLC or control terminals | ||
Textile swing frequency | Swing frequency available with preset and central frequency adjustable | ||
Auto voltage regulation | Keep a stable voltage automatically when the grid voltage transients | ||
Auto energy saving running | Max 8 multi-stage speed running via build-in PLC or control terminals | ||
Auto current limiting | Auto current limiting to prevent frequent over current fault trip | ||
Multi pumps control | With water supply kit, it can implement multi pumps constant pressure water supply | ||
Communication | Support:Modbus, Profibus, CANlink,CANopen,BACnet | ||
Running function | Running command channel | Keypad,Control terminal,Serial port,Above 3 channels are switchable | |
Frequency setting channel | Keypad potentiometer setting: ▲、▼control panel keys setting; Function code setting: Serial port setting; Terminal up/down setting: Input Analog voltage setting: Input Analog current setting: Input pulse setting; Combination ways setting;Above ways are switchable. | ||
Switch input channel | FWD/REV command: 8channels programmable switch inputs, 35kinds of function can be set separately | ||
Analog input channel | 4~20mA: 0-10V: 2 optional analog inputs | ||
Analog output channel | 4~20mA or 0~10V optional, setting frequency and output frequency ,etc. feature output | ||
Switch/pulse output channel | Programmable open collector output: relay output :0~20KHz pulse output: | ||
Control panel | LED digital display | Display setting frequency, output voltage, output current, etc. | |
External meter display | Display output frequency, output current, output voltage, etc. | ||
Key lock | All the keys can be locked | ||
Parameter copy | Function code parameters can be copied between inverters when use remote control panel. | ||
Protection function | Overcurrentprotection:overvoltageprotection:undervoltageprotection:overheating protection: overload protection, etc.(model>2.2kw) | ||
Optional parts | Remote control panel: cable: panel mounting feet, etc. | ||
Environment | Environment | Indoors, avoid from direct sunlight, dust, corrosive gas, oil mist, steam, water dropper salt, etc | |
Altitude | Lower than 1000m (derating is necessary above 1000m) | ||
Ambient temperature | -10ºC~+40ºC | ||
Humidity | <90%RH, no condensation | ||
Vibration | Lower than 5.9m/s (0.6g) | ||
Storage temperature | -20ºC~+60ºC | ||
Structure | Protection level | IP20(In the selection of state display unit or the keyboard state) | |
Cooling | Forced air cooling | ||
Installation | Wall mounted; Floor mounted |
Items | Specifications | ||
Input | Rated Voltage | Single phase220V, three phase 200V, three phase 380V; 50Hz/60Hz | |
Tolerance | Voltage: ±20% voltage deviation ratio:<3%; frequency: ±5% | ||
Output | Rated voltage | 0~200V/220V/380V/415V/440V | |
Frequency range | 0Hz~500Hz(Standard model) | 0Hz~2000Hz(High speed model) | |
Frequency resolution | 0.01Hz | ||
Overload capability | 150% rated current for1minute, 180% rated current for3 seconds | ||
Control function | Modulation modes | Optimized space voltage vector SVPWM modulation | |
Control mode | Sensorless vector control (with optimal low frequency compensation) | ||
Frequency Accuracy | Digital setting: The highest frequency×± 0.01% Analog setting: The highest frequency ×±0.2% | ||
Frequency resolution | Digital setting: 0.01Hz; Analog setting: The highest frequency× 0.1% | ||
Start frequency | 0.40Hz~20.00Hz | ||
Torque boost | Auto torque boost, manual torque boost 0.1%~30.0% | ||
V/F curve | Five ways: constant torque V/F curve, 1 kind of user defined V/F curve ,3 kinds of down torque curve(2.0/1.7/1.2times the power) | ||
Acc./Dec. curve | Two ways: linear Acc./Dec., S-curve Acc./Dec.;7 kinds of Acc./Dec. time, Time unit (minute/second) optional, max. Time: 6000 mins. | ||
DC braking | DC braking start frequency:0~15.00Hz braking time:0~60.0s braking current:0~80% | ||
Energy consuming braking | Below 22KW drive built-in energy consuming braking unit, external braking resistor is optional. | ||
Jog running | Jog frequency range:0.1Hz~50.00Hz, JOG Acc./Dec. time: 0.1~60.0s | ||
PID built-in | Easily constitute a close loop control system | ||
Multi-stage speed running | Multi-stage speed running available through built-in PLC or control terminals | ||
Textile swing frequency | Swing frequency available with preset and central frequency adjustable | ||
Auto voltage regulation | Keep a stable voltage automatically when the grid voltage transients | ||
Auto energy saving running | Max 8 multi-stage speed running via build-in PLC or control terminals | ||
Auto current limiting | Auto current limiting to prevent frequent over current fault trip | ||
Multi pumps control | With water supply kit, it can implement multi pumps constant pressure water supply | ||
Communication | Support:Modbus, Profibus, CANlink,CANopen,BACnet | ||
Running function | Running command channel | Keypad,Control terminal,Serial port,Above 3 channels are switchable | |
Frequency setting channel | Keypad potentiometer setting: ▲、▼control panel keys setting; Function code setting: Serial port setting; Terminal up/down setting: Input Analog voltage setting: Input Analog current setting: Input pulse setting; Combination ways setting;Above ways are switchable. | ||
Switch input channel | FWD/REV command: 8channels programmable switch inputs, 35kinds of function can be set separately | ||
Analog input channel | 4~20mA: 0-10V: 2 optional analog inputs | ||
Analog output channel | 4~20mA or 0~10V optional, setting frequency and output frequency ,etc. feature output | ||
Switch/pulse output channel | Programmable open collector output: relay output :0~20KHz pulse output: | ||
Control panel | LED digital display | Display setting frequency, output voltage, output current, etc. | |
External meter display | Display output frequency, output current, output voltage, etc. | ||
Key lock | All the keys can be locked | ||
Parameter copy | Function code parameters can be copied between inverters when use remote control panel. | ||
Protection function | Overcurrentprotection:overvoltageprotection:undervoltageprotection:overheating protection: overload protection, etc.(model>2.2kw) | ||
Optional parts | Remote control panel: cable: panel mounting feet, etc. | ||
Environment | Environment | Indoors, avoid from direct sunlight, dust, corrosive gas, oil mist, steam, water dropper salt, etc | |
Altitude | Lower than 1000m (derating is necessary above 1000m) | ||
Ambient temperature | -10ºC~+40ºC | ||
Humidity | <90%RH, no condensation | ||
Vibration | Lower than 5.9m/s (0.6g) | ||
Storage temperature | -20ºC~+60ºC | ||
Structure | Protection level | IP20(In the selection of state display unit or the keyboard state) | |
Cooling | Forced air cooling | ||
Installation | Wall mounted; Floor mounted |
Voltage level | Models | Rated Capatity (K/A) | Rated output current (A) current(A) | Applicable Motor (KW) |
220V Single phase | RI3000-2S0004G | 1.1 | 3.0 | 0.4 |
RI3000-2S0007G | 1.5 | 4.7 | 0.75 | |
RI3000-2S0015G | 2.8 | 7.5 | 1.5 | |
RI3000-2S0022G | 3.8 | 10.0 | 2.2 | |
220V Three phase | RI3000-2T0015G/2T0022P | 3 | 7 | 1.5 |
RI3000-2T0022G/2T0037P | 4 | 10.0 | 2.2 | |
380V Three phase | RI3000-4T0007G/4T0015P | 1.5 | 2.5 | 0.75 |
RI3000-4T0015G/4T0022P | 2.2 | 4.0 | 1.5 | |
RI3000-4T0022G/4T0037P | 3.0 | 6.0 | 2.2 | |
RI3000-4T0037G/4T0055P | 5.9 | 9.6 | 3.7 | |
RI3000-4T0055G/4T0075P | 8.5 | 14.0 | 5.5 | |
RI3000-4T0075G/4T0110P | 11 | 17.0 | 7.5 | |
RI3000-4T0110G/4T0150P | 17 | 25 | 11 | |
RI3000-4T0150G/4T0185P | 21.7 | 32 | 15 | |
RI3000-4T0185G/4T0220P | 25.7 | 39 | 18.5 | |
RI3000-4T0220G/4T0300P | 29.6 | 45 | 22 | |
RI3000-4T0300G/4T0370P | 39.5 | 60 | 30 | |
RI3000-4T0370G/4T0450P | 49.4 | 75 | 37 | |
RI3000-4T0450G/4T0550P | 60 | 91 | 45 | |
RI3000-4T0550G/4T0750P | 73.7 | 112 | 55 | |
RI3000-4T0750G/4T0900P | 99 | 150 | 75 | |
RI3000-4T0900G/4T1100P | 116 | 176 | 90 | |
RI3000-4T1100G/4T1320P | 138 | 210 | 110 | |
RI3000-4T1320G/4T1600P | 167 | 253 | 132 | |
RI3000-4T1600G/4T1850P | 200 | 304 | 160 | |
RI3000-4T1850G/4T2000P | 234 | 355 | 187 | |
RI3000-4T2000G/4T2200P | 248 | 380 | 200 | |
RI3000-4T2200G/4T2500P | 280 | 426 | 220 | |
RI3000-4T2500G/4T2800P | 318 | 470 | 250 | |
RI3000-4T2800G/4T3150P | 342 | 540 | 280 | |
RI3000-4T3150G/4T3500P | 390 | 600 | 315 | |
RI3000-4T3500G/4T4000P | 435 | 660 | 350 | |
RI3000-4T4000G/4T4500P | 493 | 750 | 400 | |
RI3000-4T4500G/4T5000P | 560 | 810 | 450 | |
RI3000-4T5000G/4T5600P | 625 | 860 | 500 | |
RI3000-4T5600G/4T6300P | 691 | 990 | 560 | |
RI3000-4T6300G/4T7000P | 770 | 1100 | 630 |
Voltage level | Models | Rated Capatity (K/A) | Rated output current (A) current(A) | Applicable Motor (KW) |
220V Single phase | RI3000-2S0004G | 1.1 | 3.0 | 0.4 |
RI3000-2S0007G | 1.5 | 4.7 | 0.75 | |
RI3000-2S0015G | 2.8 | 7.5 | 1.5 | |
RI3000-2S0022G | 3.8 | 10.0 | 2.2 | |
220V Three phase | RI3000-2T0015G/2T0022P | 3 | 7 | 1.5 |
RI3000-2T0022G/2T0037P | 4 | 10.0 | 2.2 | |
380V Three phase | RI3000-4T0007G/4T0015P | 1.5 | 2.5 | 0.75 |
RI3000-4T0015G/4T0022P | 2.2 | 4.0 | 1.5 | |
RI3000-4T0022G/4T0037P | 3.0 | 6.0 | 2.2 | |
RI3000-4T0037G/4T0055P | 5.9 | 9.6 | 3.7 | |
RI3000-4T0055G/4T0075P | 8.5 | 14.0 | 5.5 | |
RI3000-4T0075G/4T0110P | 11 | 17.0 | 7.5 | |
RI3000-4T0110G/4T0150P | 17 | 25 | 11 | |
RI3000-4T0150G/4T0185P | 21.7 | 32 | 15 | |
RI3000-4T0185G/4T0220P | 25.7 | 39 | 18.5 | |
RI3000-4T0220G/4T0300P | 29.6 | 45 | 22 | |
RI3000-4T0300G/4T0370P | 39.5 | 60 | 30 | |
RI3000-4T0370G/4T0450P | 49.4 | 75 | 37 | |
RI3000-4T0450G/4T0550P | 60 | 91 | 45 | |
RI3000-4T0550G/4T0750P | 73.7 | 112 | 55 | |
RI3000-4T0750G/4T0900P | 99 | 150 | 75 | |
RI3000-4T0900G/4T1100P | 116 | 176 | 90 | |
RI3000-4T1100G/4T1320P | 138 | 210 | 110 | |
RI3000-4T1320G/4T1600P | 167 | 253 | 132 | |
RI3000-4T1600G/4T1850P | 200 | 304 | 160 | |
RI3000-4T1850G/4T2000P | 234 | 355 | 187 | |
RI3000-4T2000G/4T2200P | 248 | 380 | 200 | |
RI3000-4T2200G/4T2500P | 280 | 426 | 220 | |
RI3000-4T2500G/4T2800P | 318 | 470 | 250 | |
RI3000-4T2800G/4T3150P | 342 | 540 | 280 | |
RI3000-4T3150G/4T3500P | 390 | 600 | 315 | |
RI3000-4T3500G/4T4000P | 435 | 660 | 350 | |
RI3000-4T4000G/4T4500P | 493 | 750 | 400 | |
RI3000-4T4500G/4T5000P | 560 | 810 | 450 | |
RI3000-4T5000G/4T5600P | 625 | 860 | 500 | |
RI3000-4T5600G/4T6300P | 691 | 990 | 560 | |
RI3000-4T6300G/4T7000P | 770 | 1100 | 630 |
Model | Dimensions(mm) | Mounting dimensions(mm) | Pore size | |||||
G | P | H | W | D | H2 | H1 | W1 | |
RI 2000 series/Input voltage: 220V single phase | ||||||||
RI2000-2S0004G | ---- | 142 | 85 | 113 | ---- | 144 | 74 | Φ5 |
RI2000-2S0007G | ---- | |||||||
RI2000-2S0015G | ---- | |||||||
RI 2000 series/Input voltage: 380V three-phase | ||||||||
RI2000-4T0007G | RI2000-4T0015P | 142 | 85 | 113 | ---- | 144 | 74 | Φ5 |
RI2000-4T0015G | RI2000-4T0022P | |||||||
RI 3000D series/Input voltage: 220V single phase | ||||||||
RI3000D-2S0022G | ---- | 184 | 98 | 135 | ---- | 174 | 88 | Φ5 |
RI3000D-2S0037G | ---- | |||||||
RI 3000D series/Input voltage: 380V three-phase | ||||||||
RI3000D-4T0007G | RI3000D-4T0015P | 184 | 98 | 135 | ---- | 174 | 88 | Φ5 |
RI3000D-4T0015G | RI3000D-4T0022P | |||||||
RI3000D-4T0022G- | RI3000D-4T0037P-M | |||||||
RI3000D-4T0022G | RI3000D-4T0037P | 230 | 118 | 153 | ---- | 220 | 108 | Φ5 |
RI3000D-4T0037G | RI3000D-4T0055P | |||||||
RI3000D-4T0055G- | RI3000D-4T0075P-M | 230 | 118 | 173 | ---- | 220 | 108 | Φ5 |
RI3000D-4T0075G- | RI3000D-4T00110P- | |||||||
RI 3000 series/Input voltage: 220V single phase | ||||||||
RI3000-2S0004G | ---- | 142 | 85 | 113 | ---- | 144 | 74 | Φ5 |
RI3000-2S0007G | ---- | |||||||
RI3000-2S0015G | ---- | |||||||
RI3000-2S0022G | ---- | 184 | 98 | 135 | ---- | 174 | 88 | Φ5 |
Model | Dimensions(mm) | Mounting dimensions(mm) | Pore size | |||||
G | P | H | W | D | H2 | H1 | W1 | |
RI 2000 series/Input voltage: 220V single phase | ||||||||
RI2000-2S0004G | ---- | 142 | 85 | 113 | ---- | 144 | 74 | Φ5 |
RI2000-2S0007G | ---- | |||||||
RI2000-2S0015G | ---- | |||||||
RI 2000 series/Input voltage: 380V three-phase | ||||||||
RI2000-4T0007G | RI2000-4T0015P | 142 | 85 | 113 | ---- | 144 | 74 | Φ5 |
RI2000-4T0015G | RI2000-4T0022P | |||||||
RI 3000D series/Input voltage: 220V single phase | ||||||||
RI3000D-2S0022G | ---- | 184 | 98 | 135 | ---- | 174 | 88 | Φ5 |
RI3000D-2S0037G | ---- | |||||||
RI 3000D series/Input voltage: 380V three-phase | ||||||||
RI3000D-4T0007G | RI3000D-4T0015P | 184 | 98 | 135 | ---- | 174 | 88 | Φ5 |
RI3000D-4T0015G | RI3000D-4T0022P | |||||||
RI3000D-4T0022G- | RI3000D-4T0037P-M | |||||||
RI3000D-4T0022G | RI3000D-4T0037P | 230 | 118 | 153 | ---- | 220 | 108 | Φ5 |
RI3000D-4T0037G | RI3000D-4T0055P | |||||||
RI3000D-4T0055G- | RI3000D-4T0075P-M | 230 | 118 | 173 | ---- | 220 | 108 | Φ5 |
RI3000D-4T0075G- | RI3000D-4T00110P- | |||||||
RI 3000 series/Input voltage: 220V single phase | ||||||||
RI3000-2S0004G | ---- | 142 | 85 | 113 | ---- | 144 | 74 | Φ5 |
RI3000-2S0007G | ---- | |||||||
RI3000-2S0015G | ---- | |||||||
RI3000-2S0022G | ---- | 184 | 98 | 135 | ---- | 174 | 88 | Φ5 |
