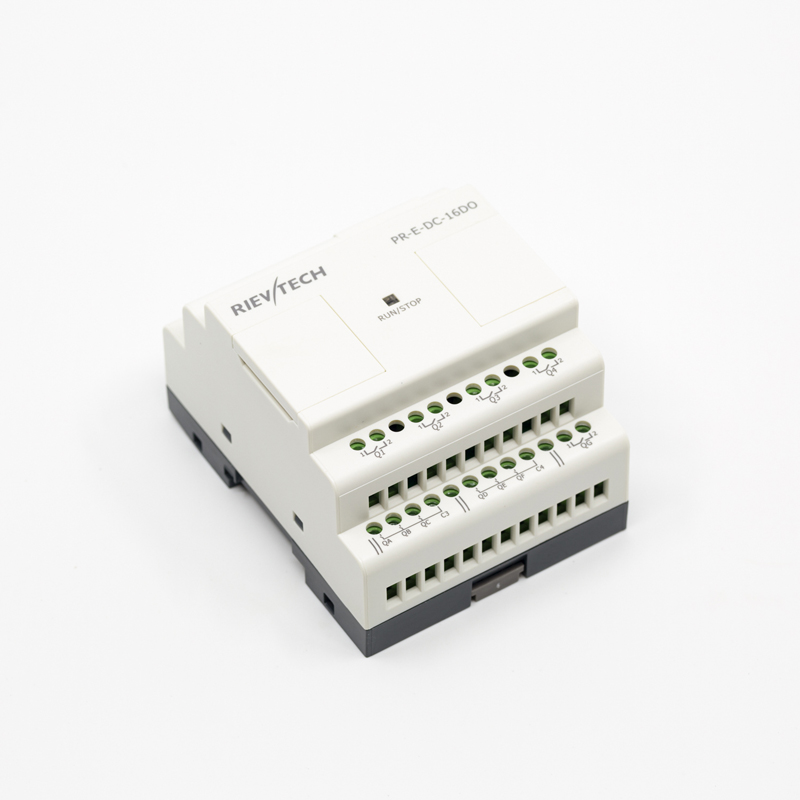

PR-E-DC-16DO

Description

To ensure diverse applications can be accomplished, Micro PLC also provides a wide selection of expansion modules along with its powerful CPU units, with the need of your industrial process control applications, various expansion units enhance the basic to provide additional capabilities , such as:A range of Digital and Analogue I/O RS485 connectivity...

GENERAL SPECIFICATIONS

Power supply:
Nominal voltage	DC 12-24V
Operating limits	DC 10.8-28.8V
Immunity from micro power cuts	Typ.5 ms
Max. Startup current	Max. 0.25A
Max. absorbed power	3 W (10.8V dc) ; 5.5 W (28.8V dc)
Protection against polarity inversions	Yes
Output parameters:
Output No.	16 (Q1-QG)
Output type	Relay output
Continuous current	(Q1-QF) Resistive load 3A/Inductive load 1A (QG) Resistive load 10A/Inductive load 2A
Max. breaking voltage	AC 250 V DC 110 V
Max. Allowable Power Force	(Q1-QF) 500VA 100W (QG)1250VA 300W
Electrical durability Expectancy	105 Operations at Rated Resistive Load
Mechanical life	107 Operations at No Load condition
Response time	Operate Time : 15 mSec. Max. Release Time : 10 mSec. Max.
Built-in protections	Against short-circuits: None Against overvoltages and overloads: None
Switch frequency:
Mechanism	10Hz
Resistor/light load	2Hz
Sensitive load	0.5Hz
Other parameters:
Operation temp	-20℃-55℃
Storage temp	-40℃-70℃
Weight	Approx.300g

Expansions for PR-18/PR-24 PLC series
Model	Supply Voltage	Inputs	Outputs	G .W(g)
PR-E-16AC-R	AC110~240V	8DI	4 relays(10A)+ 4relays(3A)	300g
PR-E-16DC-DA-R	DC12V–24V	8 digital/4 analog	4 relays(10A)+ 4relays(3A)	300g
PR-E-16DC-DA-TN	DC12V–24V	8 digital/4 analog	8 transistors(PNP)	300g
PR-E-DC-16IN	DC12V–24V	4 DI/AI(0~10V)+ 12 DI	none	200g
PR-E-DC-16DO	DC12V–24V	none	15 relays(3A)+1 relays(10A)	200g
PR-E- AC-16IN	AC 110〜240V	16 DI	none	300g
PR-E- AC-16DO	AC 110〜240V	none	15 relays(3A)+1 relays(10A)	300g
PR-E-AI-I	DC12V – 24V	4 points current signal input（0/4-20mA)	none	300g
PR-E-PT100	DC12V–24V	3 routes, temp range : -50℃- 200℃	resolution: 0.5°	300g
PR-E-AQ-VI	DC12V – 24V	None	2 routes analog outputs(0-10V /0…20mA signal)	300g
