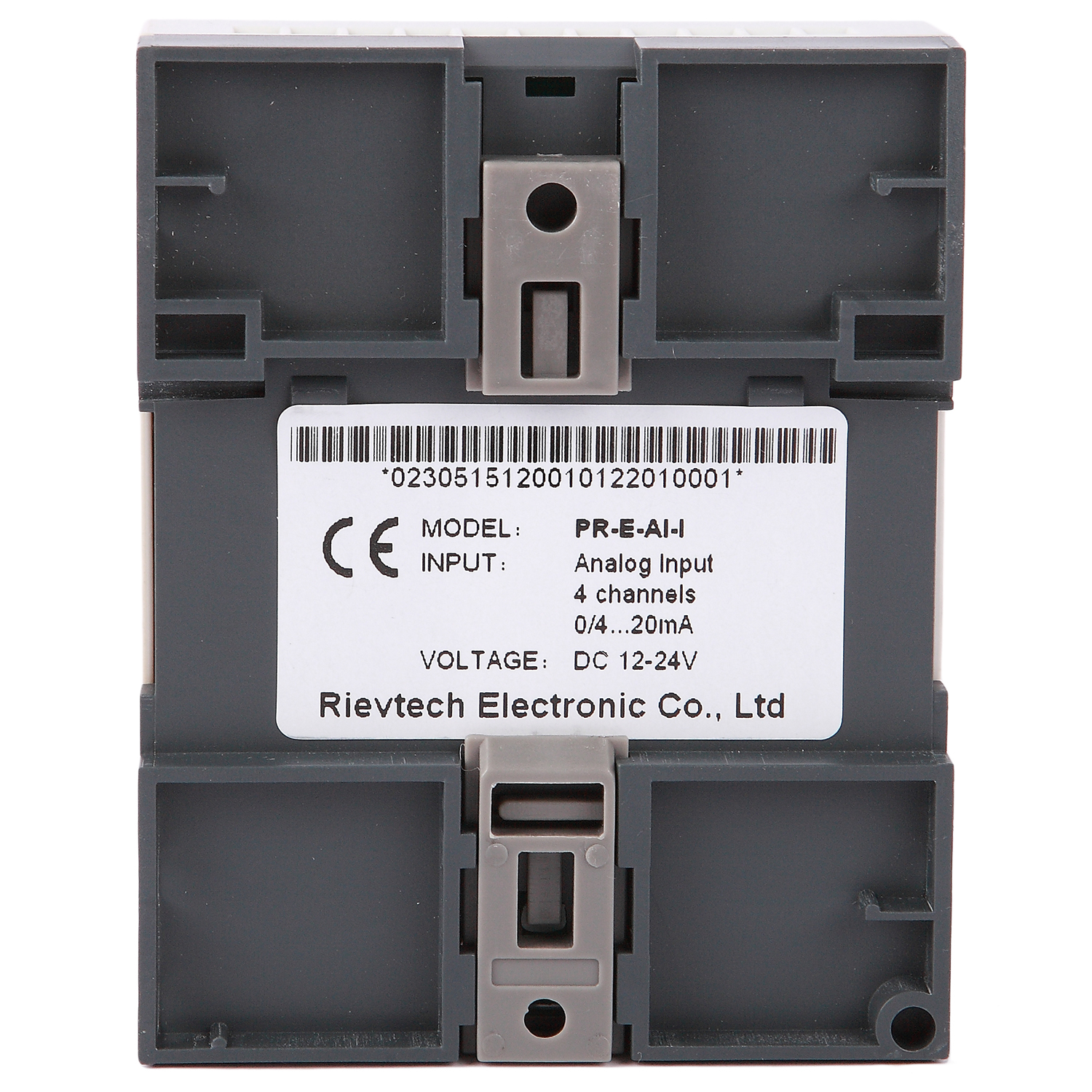

PR-E-AI-I

  • RIEVTECH
  • Supply volt : DC 12~24V
  • Input: 4 AI(0/4-20mA)
  • Outputs: None
  • Applicable CPU series: PR-14,PR-18,PR-24,PR-12N,PR-18N
Quantity:
Description

To ensure diverse applications can be accomplished, Micro PLC also
provides a wide selection of expansion modules along with its powerful
CPU units, with the need of your industrial process control applications, various expansion units enhance the basic to provide additional capabilities , such as:

A range of Digital and Analogue I/O
RS485 connectivity...
GENERAL SPECIFICATIONS

Power supply:
Nominal voltage DC 12-24V
Operating limits  DC 10.8-28.8V
Immunity from micro power cuts  Typ.5 ms
Max. Startup current Max. 0.25A
Max. absorbed power 1 W
Protection against polarity inversions Yes
Input parameters:
Input No 4(I1-I4)
Digital input None
Analogue input 4 (AI1-AI4)
Analogue signal 0/4….20mA current
Resolution 0.02mA
Accuracy at 25 °C 0.05mA
Cycle time for analog value generation Typ. 50 ms
Output parameters:
Output No None
Other parameters:
Line length (shielded and twisted) Max. 10 m
Mounting On 35-mm DIN rail, 4 WM wide, or wall mounting
Operation temp. -20-55℃
Storage temp. -40℃-70℃
Weight Approx.300g

Expansions for PR-18/PR-24 PLC series
Model Supply Voltage Inputs Outputs G .W(g)
PR-E-16AC-R AC110~240V 8DI 4 relays(10A)+
4relays(3A)
300g
PR-E-16DC-DA-R DC12V24V 8 digital/4 analog 4 relays(10A)+
4relays(3A)
300g
PR-E-16DC-DA-TN DC12V24V 8 digital/4 analog 8 transistors(PNP) 300g
PR-E-AI-I DC12V24V 4 points current
signal input0/4-20mA)
none 300g
PR-E-PT100 DC12V24V 3 routes, temp range : -50℃- 200℃ resolution:  0.3° 300g
PR-E-AQ-VI DC12V24V None 2 routes analog outputs(0-10V/020mA signal) 300g
PR-RS485 DC12V24V Isolated 485 converter, used to bring out the the terminals of RS485 port in PR-18/PR-24 series CPU for connection with third party devices. 300g



Rievtech products compatibility table .pdf
Dimension
PR-E-16

Wiring
