Description
To ensure diverse applications can be accomplished, Micro PLC also provides a wide selection of expansion modules along with its powerful CPU units, with the need of your industrial process control applications, various expansion units enhance the basic to provide additional capabilities , such as:A range of Digital and Analogue I/O RS485 connectivity...
Description
To ensure diverse applications can be accomplished, Micro PLC also provides a wide selection of expansion modules along with its powerful CPU units, with the need of your industrial process control applications, various expansion units enhance the basic to provide additional capabilities , such as:A range of Digital and Analogue I/O RS485 connectivity...
Power supply: | |
Nominal voltage | AC 110~240V |
Operating limits | AC 85~265V |
The main frequency range | 47-63Hz |
Max. absorbed power | 112mA (85V ac) ; 36mA (265V ac) |
Isolation voltage | 1780V AC |
Protection against polarity inversions | Yes |
Output parameters: | |
Output No. | 16 (Q1-QG) |
Output type | Relay output |
Continuous current | (Q1-QF) Resistive load 3A/Inductive load 1A (QG) Resistive load 10A/Inductive load 2A |
Max. breaking voltage | AC 250 V DC 110 V |
Max. Allowable Power Force | (Q1-QF) 500VA 100W (QG)1250VA 300W |
Electrical durability Expectancy | 105 Operations at Rated Resistive Load |
Mechanical life | 107 Operations at No Load condition |
Response time | Operate Time : 15 mSec. Max. Release Time : 10 mSec. Max. |
Built-in protections | Against short-circuits: None Against overvoltages and overloads: None |
Switch frequency: | |
Mechanism | 10Hz |
Resistor/light load | 2Hz |
Sensitive load | 0.5Hz |
Other parameters: | |
Operation temp | -20℃-55℃ |
Storage temp | -40℃-70℃ |
Weight | Approx.300g |
Power supply: | |
Nominal voltage | AC 110~240V |
Operating limits | AC 85~265V |
The main frequency range | 47-63Hz |
Max. absorbed power | 112mA (85V ac) ; 36mA (265V ac) |
Isolation voltage | 1780V AC |
Protection against polarity inversions | Yes |
Output parameters: | |
Output No. | 16 (Q1-QG) |
Output type | Relay output |
Continuous current | (Q1-QF) Resistive load 3A/Inductive load 1A (QG) Resistive load 10A/Inductive load 2A |
Max. breaking voltage | AC 250 V DC 110 V |
Max. Allowable Power Force | (Q1-QF) 500VA 100W (QG)1250VA 300W |
Electrical durability Expectancy | 105 Operations at Rated Resistive Load |
Mechanical life | 107 Operations at No Load condition |
Response time | Operate Time : 15 mSec. Max. Release Time : 10 mSec. Max. |
Built-in protections | Against short-circuits: None Against overvoltages and overloads: None |
Switch frequency: | |
Mechanism | 10Hz |
Resistor/light load | 2Hz |
Sensitive load | 0.5Hz |
Other parameters: | |
Operation temp | -20℃-55℃ |
Storage temp | -40℃-70℃ |
Weight | Approx.300g |
Expansions for PR-18/PR-24 PLC series | ||||
Model | Supply Voltage | Inputs | Outputs | G .W(g) |
PR-E-16AC-R | AC110~240V | 8DI | 4 relays(10A)+ 4relays(3A) | 300g |
PR-E-16DC-DA-R | DC12V–24V | 8 digital/4 analog | 4 relays(10A)+ 4relays(3A) | 300g |
PR-E-16DC-DA-TN | DC12V–24V | 8 digital/4 analog | 8 transistors(PNP) | 300g |
PR-E-DC-16IN | DC12V–24V | 4 DI/AI(0~10V)+ 12 DI | none | 200g |
PR-E-DC-16DO | DC12V–24V | none | 15 relays(3A)+1 relays(10A) | 200g |
PR-E- AC-16IN | AC 110〜240V | 16 DI | none | 300g |

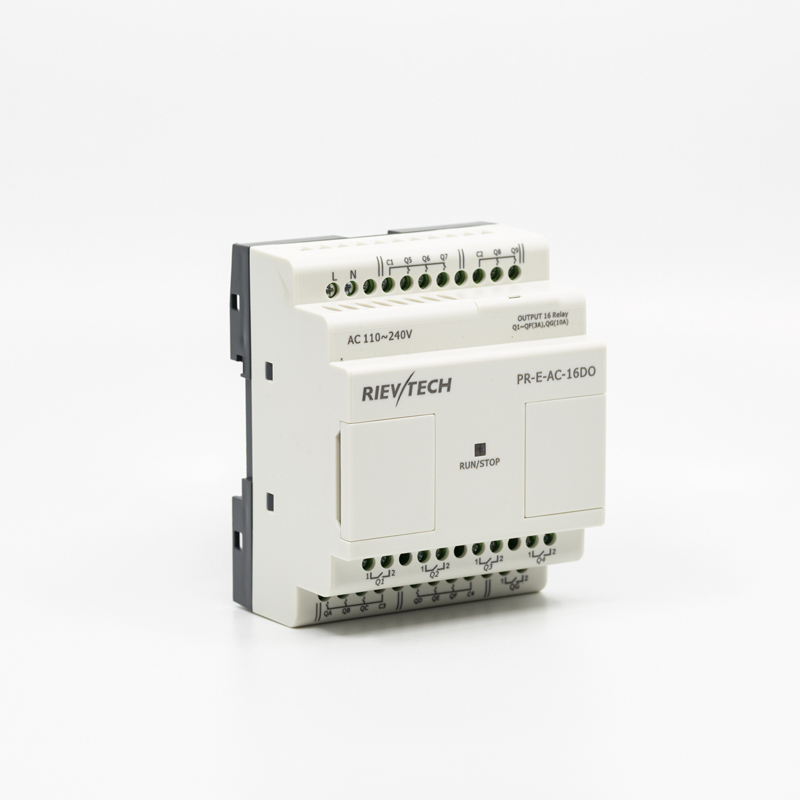

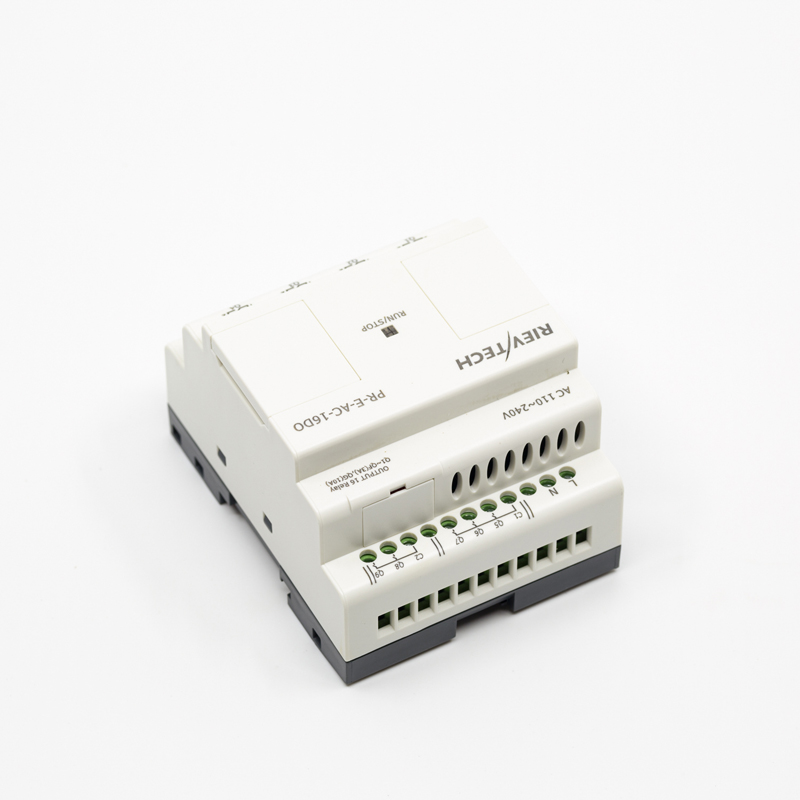

PR-E- AC-16DO | AC 110〜240V | none | 15 relays(3A)+1 relays(10A) | 300g |
PR-E-AI-I | DC12V – 24V | 4 points current signal input(0/4-20mA) | none | 300g |
PR-E-PT100 | DC12V–24V | 3 routes, temp range : -50℃- 200℃ | resolution: 0.5° | 300g |
PR-E-AQ-VI | DC12V – 24V | None | 2 routes analog outputs(0-10V /0…20mA signal) | 300g |
Expansions for PR-18/PR-24 PLC series | ||||
Model | Supply Voltage | Inputs | Outputs | G .W(g) |
PR-E-16AC-R | AC110~240V | 8DI | 4 relays(10A)+ 4relays(3A) | 300g |
PR-E-16DC-DA-R | DC12V–24V | 8 digital/4 analog | 4 relays(10A)+ 4relays(3A) | 300g |
PR-E-16DC-DA-TN | DC12V–24V | 8 digital/4 analog | 8 transistors(PNP) | 300g |
PR-E-DC-16IN | DC12V–24V | 4 DI/AI(0~10V)+ 12 DI | none | 200g |
PR-E-DC-16DO | DC12V–24V | none | 15 relays(3A)+1 relays(10A) | 200g |
PR-E- AC-16IN | AC 110〜240V | 16 DI | none | 300g |
PR-E- AC-16DO | AC 110〜240V | none | 15 relays(3A)+1 relays(10A) | 300g |
PR-E-AI-I | DC12V – 24V | 4 points current signal input(0/4-20mA) | none | 300g |
PR-E-PT100 | DC12V–24V | 3 routes, temp range : -50℃- 200℃ | resolution: 0.5° | 300g |
PR-E-AQ-VI | DC12V – 24V | None | 2 routes analog outputs(0-10V /0…20mA signal) | 300g |
