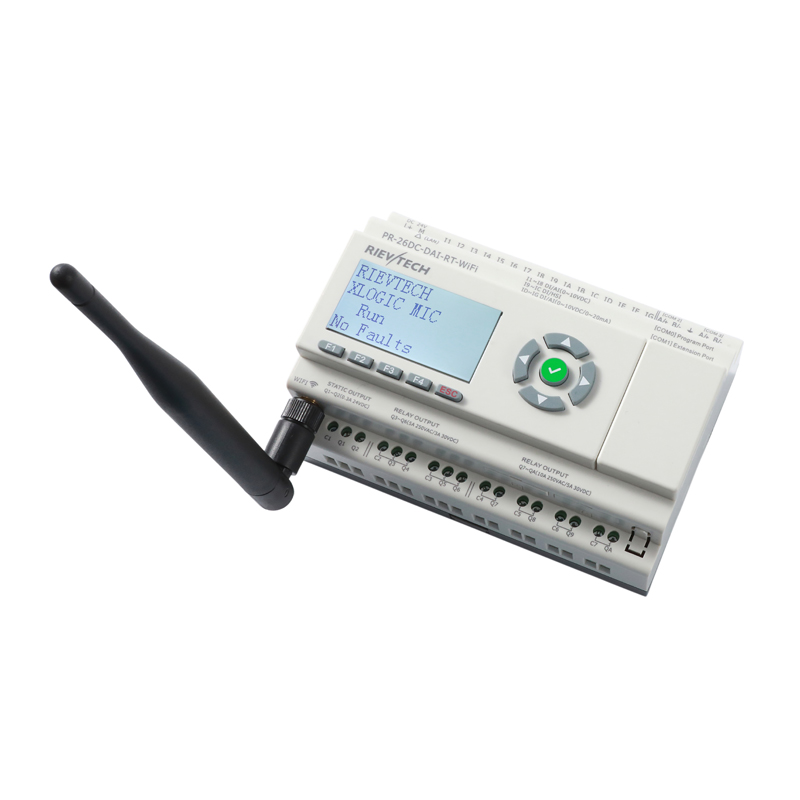

PR-26DC-DAI-RT-WIFI
PR-26DC-DAI-RT-WIFI PR-26DC-DAI-RT-WIFI
PR-26DC-DAI-RT-WIFI PR-26DC-DAI-RT-WIFI
PR-26DC-DAI-RT-WIFI PR-26DC-DAI-RT-WIFI
PR-26DC-DAI-RT-WIFI PR-26DC-DAI-RT-WIFI
PR-26DC-DAI-RT-WIFI PR-26DC-DAI-RT-WIFI

loading

PR-26DC-DAI-RT-WIFI

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • PR-26DC-DAI-RT-WIFI

  • RIEVTECH

Availability:
Quantity:

Model:PR-26DC-DAI-RT-WIFI


Small in size, Big in features

  • LCD Screen

    -I/O status,user configurable messages(up to 64) with dynamic data,FBD program monitor and controls.

    -Record on an alarm page and display the exact alarm occurrence time.

    -Parameters can be modified in the alarming message.

  • Keypad

    -With the programmable keys,you can reduce the number of used pushbuttons.

    -Modify parameters via keypad panel without downloading new program.

  • RS485 port

    -Built-in RS485 port with galvanic isolation for connection of the PLC with Modbus networks.

    -Can work both as a master and as a slave device.

  • Ethernet port

    -The built-in Ethernet port allows you to upload/download programs to the PLC,configure it,take advantage of the built-in web server,connect to other devices and more.

    -The PLC can work as TCP server and TCP client at the same time,and also it can work as UDP server or UDP client as well.

  • Expansion port(up tp 16 modules)

    -A wide variety of expansion modules such as Digital I/O, Analog I/O and communication modules are avarilable to create the application you need.

  • Micro SD Card slot for data-logging

    -Data-logging is the process of collecting,in real time, determined process parameters such as conditions,values as well as the time that said information is collected,or noted.

  • MQTT protocol support

    -Pub/Sub messaging protocol typically used to connect hardware to the Cloud, No more need for inermediate Gateway devices.


    Looking for the full xLogic product lineup, programming manuals and software downloads? Check out our dedicated xLogic Relay website.

GENERAL SPECIFICATIONS

◆Timers: 1024
◆Counters: 1024
◆Function Blocks: 1024
◆Operation temp.: -20 ℃ - 55 ℃

◆Storage: -40 ℃ - 70 ℃

◆Protection: IP20 (Non-waterproof)
◆RTC accuracy: MAX
±2S/day
◆RTC Backup at 25 ℃: 20 days
◆Program and settings Backup: 10 years
◆Data Power-off retentivity: 10 years
◆Modify parameters via keypad LCD: YES
◆Dimensions: 133*90*60(Unit:mm)
◆Certificate:
◆Installation: 35-DIN rail or screw for installation
◆Expansion capacity: 16 modules (PR-E-16)
◆Password protection: 4-digit number password protection or disable program upload function
◆Communication interface: 1 RS232 Port (COM0) & 1 RS485 port (COM1 external) available via optional accessory,
                                         2 built- in RS485 (C0M2, C0M3), 1Ethernet port.
◆Communication protocol: Modbus RTU/ASCII, Modbus TCP


Technical Index




Power supply:
Nominal voltage DC 24V
Operating limits DC 20.4-28.8V
Immunity from micro power cuts Typ.5 ms
Max. Startup current Max. 0.3A
Max. absorbed power 10W
Protection against polarity inversions Yes
Input parameters:
Input No 16 ( I1-IG)
Digital input 16 ( I1-IG)
Analogue input 8 ( I1-I8)(0..10V DC) +4(ID-IG)(0...20mA OR 0..10V DC)
Digital input and analog inputs (0...10V)10bits( I1-I8 )
Inputs used as digital inputs( I1-I8 )
Input voltage DC0-28.8V
Input signal0 < 5V DC;<0.08mA
Input signal1 > 8 V DC;>0.12mA
Input current 0.16mA @ 10.8V dc
0.18mA @ 12.0 V dc
0.34mA @ 24 V dc
0.41mA @ 28.8 V dc
Response time 0 to 1 :Typ. 10.5 ms ;1 to 0 :Typ. 1.5 ms
Maximum counting frequency Typ.:4 HZ
Sensor type Contact or 3-wire PNP
Input type Resistive
Isolation between power supply and inputs None
Isolation between inputs None
Inputs used as analog inputs(0..10V)( I1-I8 )
Measurement range DC 0---10V
Input impedance Min, 24K&Omega;; Max. 72K&Omega;
Input voltage 28.8 V DC max
Resolution 10bit ,0.01V
Accuracy at 25 &deg;C &plusmn; (Max.0.02)V
Accuracy at 55 &deg;C &plusmn; (Max.0.04)V
Isolation between analog channel and power supply None
Cable length 10 m max. shielded and twisted
Digital and high speed inputs(I9--IC)
Digital inputs( I9-IC )
Input voltage DC0-28.8V
Input signal0 < 5V DC; <1mA
Input signal1 > 8 V DC;>1.6mA
Input current 2.1mA @ 10.8V dc
2.3mA @ 12.0 V dc
4.6 mA @ 24 V dc
5.5 mA @ 28.8 V dc
Response time 0 to 1 :<1 ms ;1 to 0 :<1 ms
High speed inputs( I9-IC )
Maximum counting frequency 60kHZ(I9--IC)
Digital and analog(0--10V)&analog(0...20mA)(ID-IG)
Inputs used as digital inputs( ID-IG )
Input voltage DC0-28.8V
Input signal0 < 5V DC;<0.08mA
Input signal1 > 8 V DC;>0.12mA
Input current 0.16mA @ 10.8V dc
0.18mA @ 12.0 V dc
0.34mA @ 24 V dc
0.41mA @ 28.8 V dc
Response time 0 to 1 :Typ. 10.5 ms ;1 to 0 :Typ. 1.5 ms
Maximum counting frequency Typ.:4 HZ
Sensor type Contact or 3-wire PNP
Input type Resistive
Isolation between power supply and inputs None
Isolation between inputs None
Inputs used as analog inputs(0..10V)( ID-IG )
Measurement range DC 0---10V
Input impedance Min, 24K&Omega;; Max. 72K&Omega;
Input voltage 28.8 V DC max
Resolution 10bit ,0.01V
Accuracy at 25 &deg;C &plusmn; (Max.0.02)V
Accuracy at 55 &deg;C &plusmn; (Max.0.04)V
Isolation between analog channel and power supply None
Cable length 10 m max. shielded and twisted
Input signal0 < 5V DC;<0.08mA
Input signal1 > 8 V DC;>0.12mA
Input current 0.16mA @ 10.8V dc
0.18mA @ 12.0 V dc
0.34mA @ 24 V dc
0.41mA @ 28.8 V dc
Response time 0 to 1 :Typ. 10.5 ms ;1 to 0 :Typ. 1.5 ms
Sensor type Contact or 3-wire PNP
Input type Resistive
Isolation between power supply and inputs None
Isolation between inputs None
Inputs used as analog inputs(0..20mA)( ID-IG )
Analogue signal 0/4&hellip;.20mA current
Input impedance 260&Omega;
Resolution 0.02mA
Accuracy at 25 &deg;C 0.05mA
Cycle time for analog value generation Typ. 50 ms
Protection against polarity inversions yes
Overvoltage protection Yes, if the input voltage is >6.5V, this one is automatically switched on 0--10V configuration
Isolation between power supply and inputs No
Cable length <=30M with shielded twisted cable(sensor not isolated)


Output
Digital/Transistor output(PNP) - Q1,Q2
Breaking voltage DC 5--30V
Nominal voltage &le; Supply voltage
Nominal current Max. 0.3 A per channel
Max. breaking current 0.65 A
Voltage drop < 2 V   for I = 0.3 A (at state 1)
Response time Make &le; 1 ms
Release &le; 1 ms
Frequency (Hz) resistive load : 10 Hz
inductive load : 0.5 Hz
Built-in protections Against overloads and short-circuits: No
Against overvoltages (*): No
Galvanic isolation None
PWM frequency 10K HZ
PWM cyclic ratio 0  to 100 %
PWM accuracy at 120Hz < 0.5 % (20 % ➞ 80 %) load at 10 mA
Max. Breaking current PWM 50 mA
Max. cable length PWM 20m
5A Relay 4 outputs from Q3 to Q6
Max. breaking voltage CE:AC 250 V/DC 30 V 5A
UL:AC 250 V/DC 30 V 3A
Electrical durability Expectancy 105 Operations at Rated Resistive Load
Mechanical life 107 Operations at No Load condition
Response time Operate Time: 15 mSec. Max.
Release Time: 10 mSec. Max.
Built-in protections Against short-circuits: None
Against overvoltages and overloads: None
10A Relay 4 outputs from Q7 to QA
Max. breaking voltage CE:AC 250 V/DC 30 V 10A
UL:AC 250 V/DC 28 V 5A
Max. Allowable Power Force 1250VA
Electrical durability Expectancy 105 Operations at Rated Resistive Load
Mechanical life 107 Operations at No Load condition
Response time Operate Time: 15 mSec. Max.
Release Time: 10 mSec. Max.
Built-in protections Against short-circuits: None
Against overvoltages and overloads: None
Communication ports parameters:
COM0_TTL port Can be used as program port with PR-RS232&PR-USB;
Also can be convert to RS232 port with PR-RS232
Can be convert to RS485 port with PRO-RS485
Note:Need move away the expand cover to use it
Can be used as modbus master or slave
Built-in RS485 COM2 1 built-in RS485 port (Terminal A+,B-)
Can be used as modbus master or slave
Built-in RS485 COM3 1 built-in RS485 port (Terminal A+,B-)
Can be used as modbus master or slave
Ext RS485 COM1 Need use with PR-E-RS485 module
Can be used as modbus master or slave
Ethernet port: Built-In(10M/100M),
1.Can be used as program or communication
2.Can be used as modbus master or slave
Monitoring webserver page Yes
Xlogic<--->Xlogic(by Ethernet) 1 xlogic works as tcp server can connect with 8 tcp client   xlogics or other tcp devices.
Xlogic<--->Ethernet/Internet: 1 xlogic works as TCP clients can connect with 8 different tcp servers separately in maximum


Other parameter
Weight Approx.400g


PR-26 Series CPU
Model Supply volt Inputs Outputs High-speed count PWM 4G/GSM/GPRS Ethernet port E-MAIL MQTT
PR-26AC-R-N AC110~240V I1-IG : 16 DI AC ;    Q1--Q6(RELAY 5A 250VAC / 3A 30VDC) + Q7--QA(RELAY 10A 250VAC /5A 30VDC) None NO NO YES NO YES
PR-26DC-DAI-RA-N  DC24V I1-I8:8DI/AI(0-10V signal)+I9-IC:4DI/HSI+ID-IG:4 DI/AI(0-10V/0-20mA signal);    Q1-Q2(0-20mA/0-10V)+Q3-Q6(RELAY 5A 250VAC/3A 30VDC)+Q7-QA(RELAY 10A 250VAC/5A 30VDC) 4 routers(I9-IC)(60KHZ) NO NO YES NO YES
PR-26DC-DAI-RT-N DC24V I1-I8:8DI/AI(0-10V signal)+I9-IC:4DI/HSI+ID-IG:4 DI/AI(0-10V/0-20mA signal);    Q1-Q2(0-20mA/0-10V)+Q3-Q6(RELAY 5A 250VAC/3A 30VDC)+Q7-QA(RELAY 10A 250VAC/5A 30VDC) 4 routers(I9-IC)(60KHZ) 2 (Q1--Q2)(10KHZ) NO YES NO YES
PR-26DC-DAI-RT-2G DC24V I1-I8:8DI/AI(0-10V signal)+I9-IC:4DI/HSI+ID-IG:4 DI/AI(0-10V/0-20mA signal);    Q1-Q2(0-20mA/0-10V)+Q3-Q6(RELAY 5A 250VAC/3A 30VDC)+Q7-QA(RELAY 10A 250VAC/5A 30VDC) 4 routers(I9-IC)(60KHZ) 2 (Q1--Q2)(10KHZ) 2G/GSM YES NO YES
PR-26DC-DAI-RT-4G DC24V I1-I8:8DI/AI(0-10V signal)+I9-IC:4DI/HSI+ID-IG:4 DI/AI(0-10V/0-20mA signal);    Q1-Q2(0-20mA/0-10V)+Q3-Q6(RELAY 5A 250VAC/3A 30VDC)+Q7-QA(RELAY 10A 250VAC/5A 30VDC) 4 routers(I9-IC)(60KHZ) 2 (Q1--Q2)(10KHZ) 2G/4G/GSM  YES YES YES
PR-26DC-DAI-RT-WIFI DC24V I1-I8:8DI/AI(0-10V signal)+I9-IC:4DI/HSI+ID-IG:4 DI/AI(0-10V/0-20mA signal);    Q1-Q2(0-20mA/0-10V)+Q3-Q6(RELAY 5A 250VAC/3A 30VDC)+Q7-QA(RELAY 10A 250VAC/5A 30VDC) 4 routers(I9-IC)(60KHZ) 2 (Q1--Q2)(10KHZ) NO YES NO YES
PR-26DC-DAI-RT-4GWIFI DC24V I1-I8:8DI/AI(0-10V signal)+I9-IC:4DI/HSI+ID-IG:4 DI/AI(0-10V/0-20mA signal);    Q1-Q2(0-20mA/0-10V)+Q3-Q6(RELAY 5A 250VAC/3A 30VDC)+Q7-QA(RELAY 10A 250VAC/5A 30VDC) 4 routers(I9-IC)(60KHZ) 2 (Q1--Q2)(10KHZ) 2G/4G/GSM  YES YES YES



Rievtech products compatibility table .pdf
Installation Dimensions
