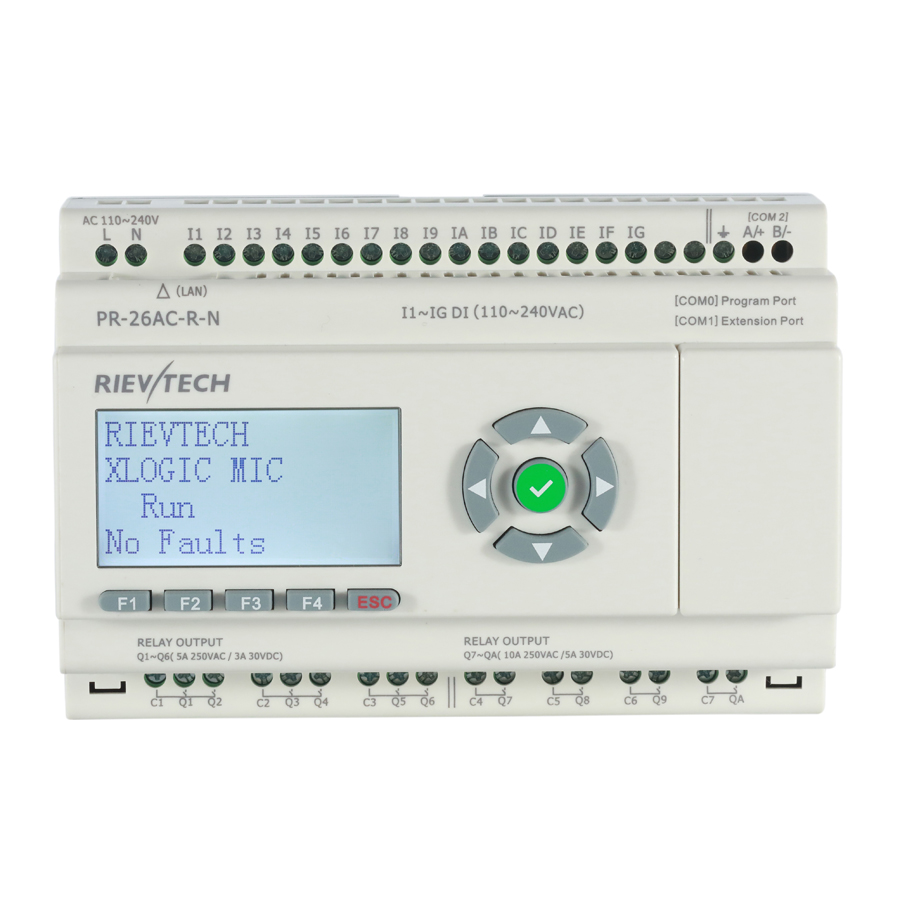

PR-26AC-R-N

  • PR-26AC-R-N
  • RIEVTECH
  • Supply Volt: AC 110V- 240V
  • Inputs: 16 DI AC
  • Outputs: 10 RELAY Outputs
  • Expandable: Yes (Max 16)
Quantity:

Small in size, Big in features

  • LCD Screen

    -I/O status,user configurable messages(up to 64) with dynamic data,FBD program monitor and controls.

    -Record on an alarm page and display the exact alarm occurrence time.

    -Parameters can be modified in the alarming message.

  • Keypad

    -With the programmable keys,you can reduce the number of used pushbuttons.

    -Modify parameters via keypad panel without downloading new program.

  • RS485 port

    -Built-in RS485 port with galvanic isolation for connection of the PLC with Modbus networks.

    -Can work both as a master and as a slave device.

  • Ethernet port

    -The built-in Ethernet port allows you to upload/download programs to the PLC,configure it,take advantage of the built-in web server,connect to other devices and more.

    -The PLC can work as TCP server and TCP client at the same time,and also it can work as UDP server or UDP client as well.

  • Expansion port(up tp 16 modules)

    -A wide variety of expansion modules such as Digital I/O, Analog I/O and communication modules are avarilable to create the application you need.

  • Micro SD Card slot for data-logging

    -Data-logging is the process of collecting,in real time, determined process parameters such as conditions,values as well as the time that said information is collected,or noted.

  • MQTT protocol support

    -Pub/Sub messaging protocol typically used to connect hardware to the Cloud, No more need for inermediate Gateway devices.

Model:PR-26AC-R-N

GENERAL SPECIFICATIONS
Timers: 1024
Counters: 1024
Function Blocks: 1024
Operation temp.: -20°C - 55°C
Storage: -40°C - 70°C
Protection: IP20 (Non-waterproof)
RTC accuracy: MAX ±2S/day
RTC Backup at 25 °C: 20 days
Program and settings Backup: 10 years
Data Power-off retentivity: 10 years
Modify parameters via keypad LCD: YES
Dimensions: 133*90*60Unitmm
Certificate:
Installation: 35-DIN rail or screw for installation
Expansion capacity: 16 modules (PR-E-16)
Password protection: 4-digit number password protection or disable program upload function
Communication interface: 1 RS232 Port (COM0) & 1 RS485 port (COM1 external) available via optional accessory,
                                         1 built- in RS485 (C0M2), 1Ethernet port.

Communication protocol: Modbus RTU/ASCII, Modbus TCP


Technical Index



Power supply:
Nominal voltage AC110V-240V
Operating limits AC85 - 265 V
The main frequency range 47-63Hz
Max. absorbed power 50mA (85V ac) ; 40mA (265V ac)
Isolation voltage 1780V AC
Protection against polarity inversions Yes
Input parameters:
Input No 16( I1-IG)
Digital input 16 ( I1-IG)
Analogue input None
Input voltage AC110-240V
Input signal0 AC0-40V<0.03mA
Input signal1 AC79-240V;  >0.06mA
Input Response Time Delay time at 0 to 1
120V AC Typ. 50 ms
240V AC Typ. 30 ms
Delay time at 1 to 0
120V AC Typ. 90 ms
240V AC Typ.100 ms
Maximum counting frequency Typ. 4Hz
Sensor type Contact or 3-wire PNP
Isolation between power supply and inputs None
Isolation between inputs None
Protection against polarity inversions Yes
Input type Resistive
Isolation between power supply and inputs None
Isolation between inputs None
Output
5A Relay 6 outputs from Q1 to Q6
Max. breaking voltage CE:AC 250 V/DC 30 V 5A
UL:AC 250 V/DC 30 V 3A
Electrical durability Expectancy 105 Operations at Rated Resistive Load
Mechanical life 107 Operations at No Load condition
Response time Operate Time: 15 mSec. Max.
Release Time: 10 mSec. Max.
Built-in protections Against short-circuits: None
Against overvoltages and overloads: None
10A Relay 4 outputs from Q7 to QA
Max. breaking voltage CE:AC 250 V/DC 30 V 10A
UL:AC 250 V/DC 28 V 5A
Max. Allowable Power Force 1250VA
Electrical durability Expectancy 105 Operations at Rated Resistive Load
Mechanical life 107 Operations at No Load condition
Response time Operate Time: 15 mSec. Max.
Release Time: 10 mSec. Max.
Built-in protections Against short-circuits: None
Against overvoltages and overloads: None
Communication ports parameters:
COM0_TTL port Can be used as program port with PR-RS232&PR-USB;
Also can be convert to RS232 port with PR-RS232
Can be convert to RS485 port with PRO-RS485
Note:Need move away the expand cover to use it
Can be used as mobus master or slave
Built-in RS485 1 built-in RS485 port (Terminal A+,B-)
Can be used as mobus master or slave
Ext RS485 Need use with PR-E-RS485 module
Can be used as mobus master or slave
Ethernet port: Built-In(10M/100M),
1.Can be used as program or communication
2.Can be used as mobus master or slave
Monitoring webserver page Yes
Xlogic<--->Xlogic(by Ethernet) 1 xlogic works as tcp server can connect with 8 tcp client   xlogics or other tcp devices.
Xlogic<--->Ethernet/Internet: 1 xlogic works as TCP clients can connect with 8 different tcp servers separately in maximum
Other parameter
Weight Approx.400g

PR-26 Series CPU
Model Supply volt Inputs Outputs High-speed count PWM E-MAIL RTC G.W(g)
PR-26AC-R-N AC110~240V 16 Digital 6 relays(10A)+
4 relays(3A)
None NO NO YES 400g
PR-26DC-DAI-RA-N  DC24V 8DI/AI (0-10V signal)+4DI/HSI +4 DI/AI (0-10V/0-20mA signal);    2 Analog +8 Relay  4 routes NO NO YES 400g
PR-26DC-DAI-RT-N DC24V 8DI/AI(0-10V signal)+4DI/HSI+4 DI/AI(0-10V/0-20mA signal);   4relay(10A)+
2Transistor(0.3A)
+4relay(5A)
4 routes YES NO YES 400g
