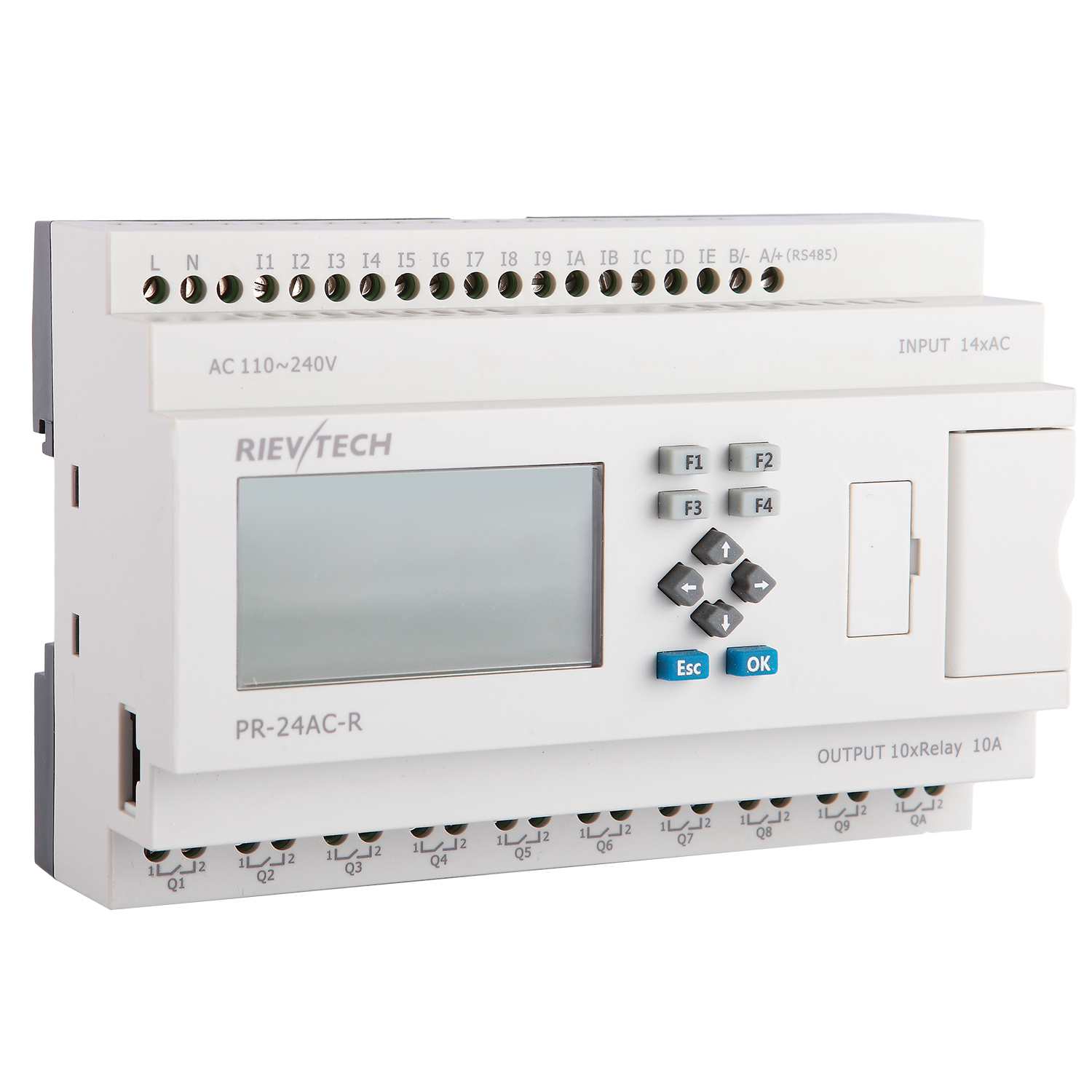

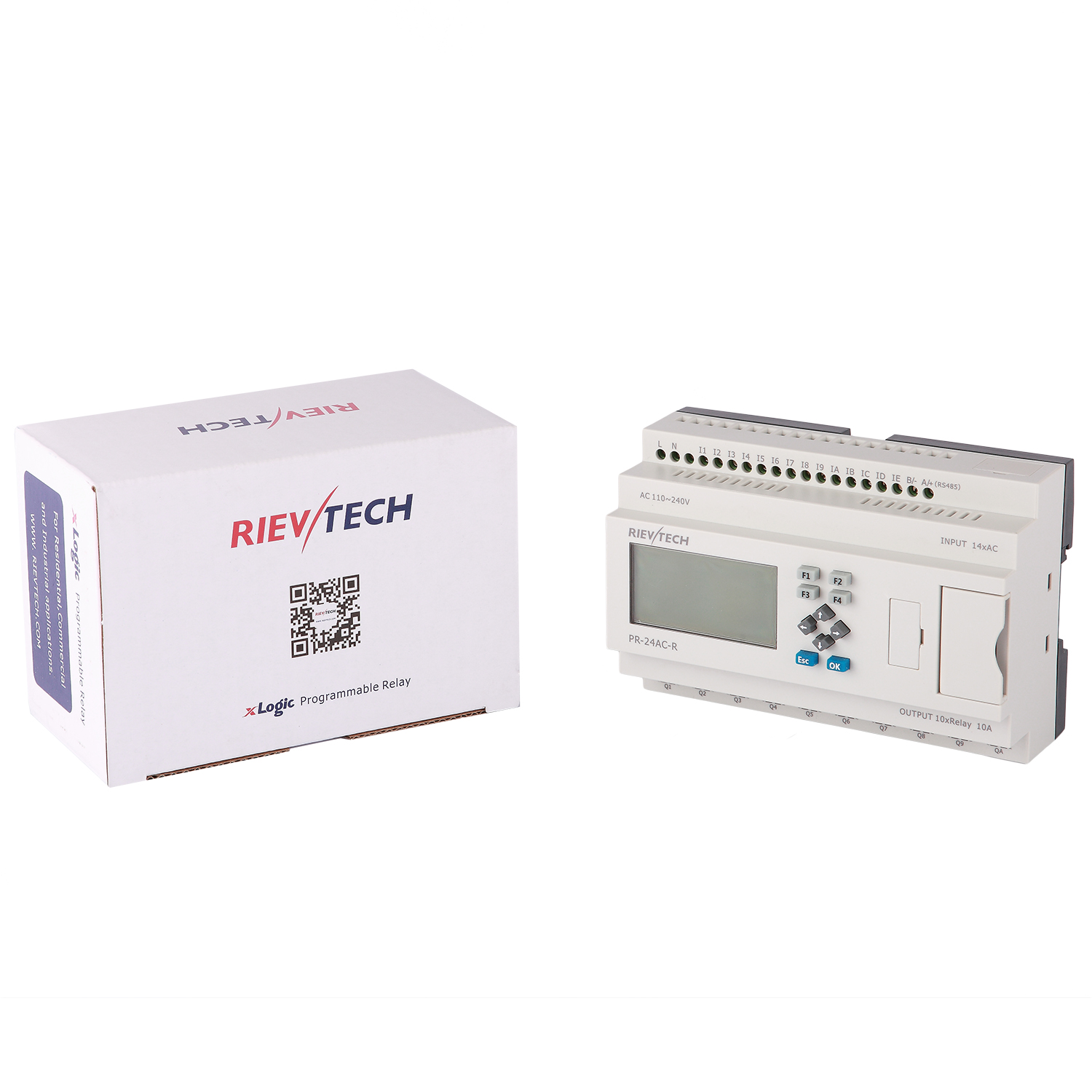

PR-24AC-R

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • RIEVTECH

Availability:
Quantity:

Micro PLC PR-24 series (Expandable Range)series overview:

PR- 24 range(Micro PLC) is advanced level model, incorporating a good mix of digital and Analogue IO, Integrated High Speed inputs
 and PWM output,clock with calendar, counters , timers , integrated keypad display,
serial communications and an expansion port. Available in 120V/240VAC or 12V/24VDC versions ; Easy to configure with drag-and-drop
 function blocks using FREE xLogicSoft software. Program capacity has been
 enlarged to 1024 function blocks as well, also high-speed count reaches 60KHZ.


PR-24 range offers 4-line*16 characters LCD display and keypad for program modification or display and control whilst program is running.
 An expansion port allows the connection of up to
16 expansion modules,
 extending the I/O
 channel count. Now it is also possible to use the analog output module to solve simple closed-loop control tasks.
Heating and cooling systems can be designed with the RTD PT100 module using special functions for PI control,ramp response and
analog multiplexer.


Highlight of PR-24 Series

◆70 ready-to use functions integrated-no additional devices such as operating hours counter required.
◆Extremely large program capacity:up to 1024 functions possible.
◆12 digital inputs(incl 6AI with 12/24V DC)and 6 digital outputs on board.
◆Flexibly expandable up to 142DI,138DO,72AI,and 32AO.
◆Display of message texts,actual and set-point values and direct modification of the values on the display(not on pure variants).
◆Integrated data retentivity-ensures backup of the current values in the event of a power failure.
◆Customizable Start-up page/screen.
 ◆Bool function,multiple timers,counters,PWM,PI controller,Ramp.Analog math supported.
◆Can be modularly expanded up to 280 I/Os.
◆230V units can be expanded with analog modules.
◆Datalogging:Data from the production process can be saved in SD card of the external accessory called ELC-MEMORY to
   either read it with a PC or evaluate it from the SD card at the workstation.

◆Extremely simple software
◆Display of up to 128 messages.
◆Multiple kinds of registers can be accessed.
◆Parameters setting menu in LCD panel.
◆Parameters can be modified in the alarming message.
◆Modbus RTU/ASCII protocol supported.
◆Retentive memory capability.
◆Powerful communication capability(1RS232 port,2 RS485 ports(1 built-in&1 need RS485 extension ,and 1 IO expansion port)
◆Password protection.
◆It’s optional for xLogic to act as salve or master in certain Modbus communication network.
◆Backup at Real Time Clock(RTC) at 25 ℃:20 days.
◆2 PWM channels optional.
◆Communicate with third party device which supports Modbus network.




Model:PR-24AC-R-HMI
GENERAL SPECIFICATIONS
Timers  : 1024
Counters  : 1024
Function Blocks : 1024
Operation temp. : -20℃-55℃
Storage :-40℃-70℃
Protection : IP20(Non-waterproof)
RTC accuracy : MAX ±2S/day
RTC Backup at 25 °C : 20 days
Program and settings Backup :10 years
Data Power-off retentivity : 10 years
Modify parameters via keypad LCD:  yes
Dimensions : 133*90*61(Unit:mm)
Certificate : CE
Installation : 35-DIN rail or screw for installation
Expansion capacity: 16  modules (PR-E-16)
Password protection : 4-digit number password protection or disable program upload function
Communication interface :1 RS232 port & 2 RS485 ports(1 buit-in& 1need RS485 extension)
Communication protocol : Modbus RTU/ASCII


Technical Index


Power supply:
Nominal voltage AC110V-240V
Operating limits  AC85 - 265 V
The main frequency range  47-63Hz
Max. absorbed power 49mA (85V ac) ; 37mA (265V ac)
Isolation voltage 1780V AC
Protection against polarity inversions Yes
Input parameters:
Input No 14( I1-IE)
Digital input  14 ( I1-IE)
Analogue input  None
Input voltage  AC110-240V
Input signal0  AC0-40V;<0.03mA
Input signal1  AC79-240V;  >0.06mA
Input Response Time Delay time at 0 to 1:
120V AC :Typ. 50 ms
240V AC :Typ. 30 ms
Delay time at 1 to 0:
120V AC :Typ. 90 ms
240V AC :Typ.100 ms
Maximum counting frequency Typ. 4Hz
Sensor type Contact or 3-wire PNP
Isolation between power supply and inputs None
Isolation between inputs None
Protection against polarity inversions Yes
Output parameters:
Output No. 10 (Q1-QA)
Output type  Relay output
Max. Allowable Power Force(Resistive) CE: 10A,250V AC/DC30V
Electrical durability Expectancy 105 Operations at Rated Resistive Load
Mechanical life 107 Operations at No Load condition
Response time Operate Time : 15 mSec. Max.
Release Time : 10 mSec. Max.
Built-in protections Against short-circuits: None
Against overvoltages and overloads: None
Switch frequency:
Mechanism 10Hz
Resistor/light load 2Hz
Sensitive load 0.5Hz
Other parameters:
Weight Approx.500g

Program language

FBD & Ladder



PR-24 Series CPU
Model Supply volt Inputs Outputs High-speed count PWM HMI RTC G.W(g)
PR-24AC-R AC110~240V 14 Digital 10relays(10A)  None NO YES YES 400g
PR-24DC-DA-R DC12V-DC24V 6 digital/(0-10V)
+8 digital
10 relays(10A)  4 routes NO YES YES 400g
PR-24DC-DAI-RTA DC12V-DC24V 4 digital/(0-10V)
2(0/4 - 20mA)+8
 digital
6relay(10A)+2Transistor(0.3A)+1(0..10V)/
1(0..20mA)
4 routes YES YES YES 400g




Rievtech products compatibility table .pdf

Dimensions
PR_24

Wiring


PR_24AC_R
