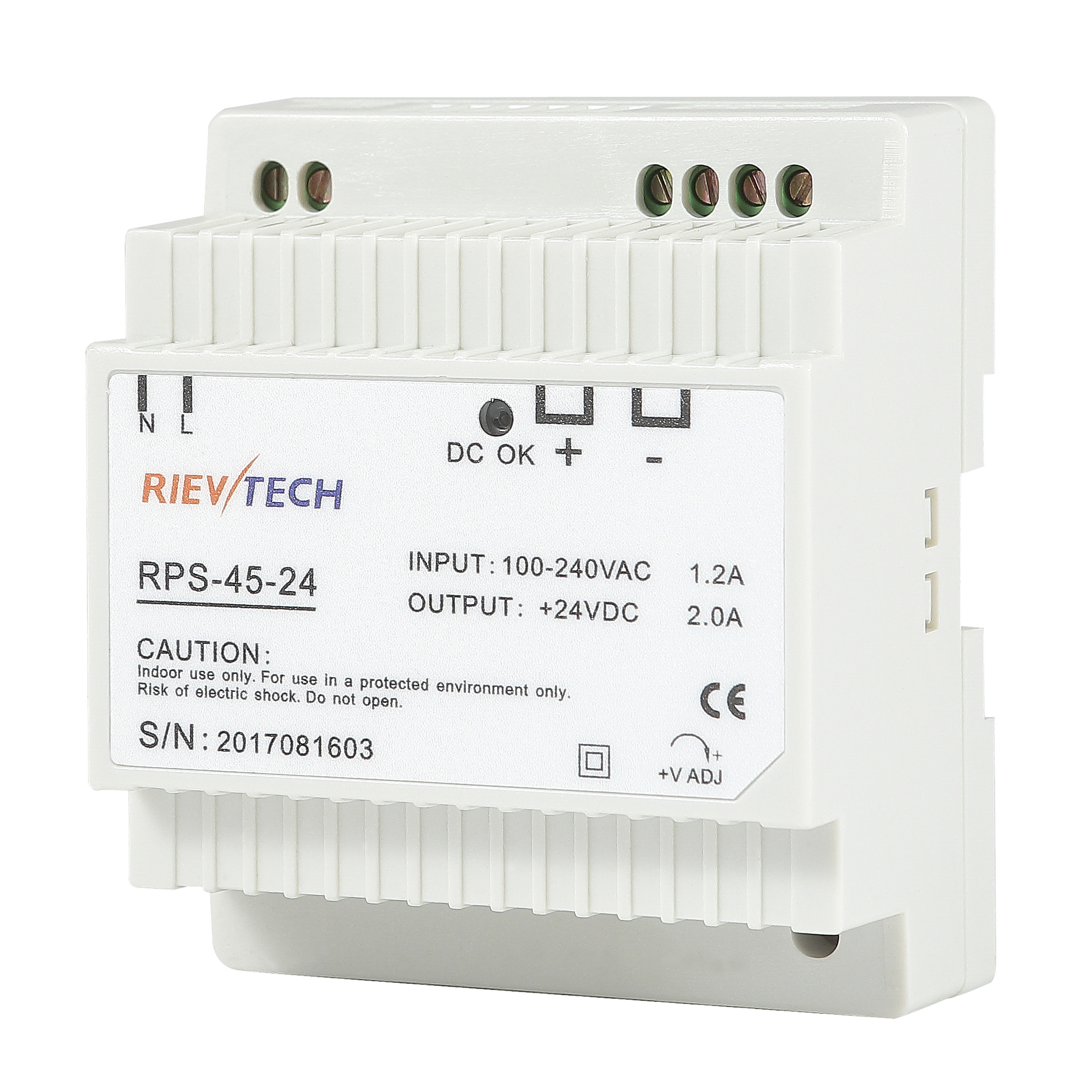

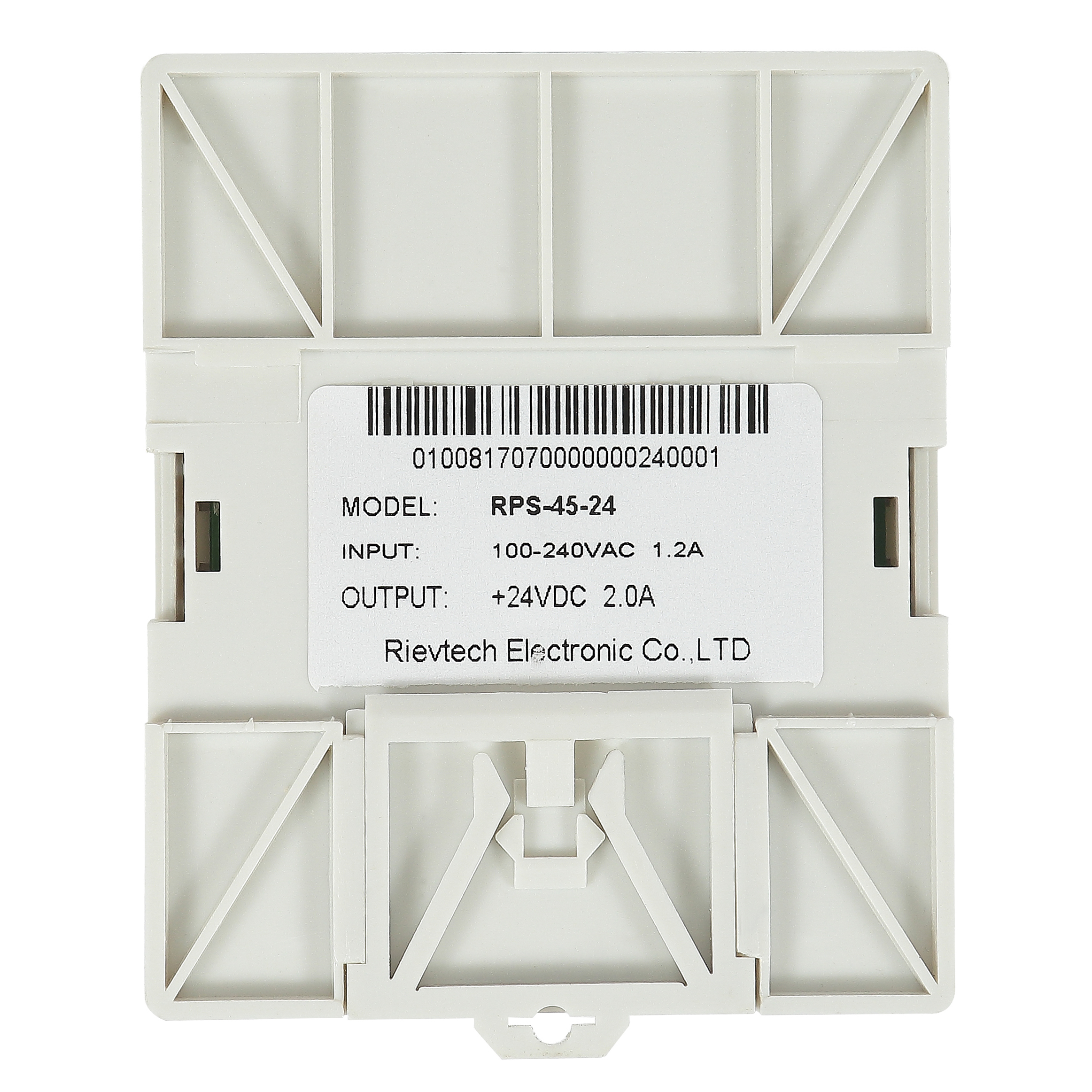

| Model | RPS-45-12 | RPS-45-24 | |
| Output | DC voltage | 12V | 24V |
| Rated current | 3.5A | 2A | |
| Current range | 0 ~ 3.5A | 0 ~ 2A | |
| Rated power | 42W | 48W | |
| Ripple noise(Max.) | 200mVp-p | 200mVp-p | |
| Voltage ADJ. range | 11.1--13.2V | 21.6--26.4V | |
| Voltage tolerance | ±1.0% | ±1.0% | |
| Line regulation | ±1.0% | ±1.0% | |
| Load regulation | ±1.0% | ±1.0% | |
| Setup, rise time | 800ms, 60ms, /230VAC，200ms, 30ms,/115VAC at full load | ||
| Hold time(Typ.) | 60ms/230VAC 23ms/115VAC at full load | ||
| Input | Voltage range | 85 ~ 264VAC 120 ~ 370VDC | |
| Frequency range | 47 ~ 63Hz | ||
| Efficiency(Typ.) | 77% | 80% | |
| AC current | 1.5A/115VAC 0.75A/230VAC | ||
| Inrush current(max.) | COLD START28A/115VAC 56A/230VAC | ||
| Protection | Overload | 105--160% rated output power | |
| Protection type: Constant current limiting, recovers automatically after fault condition is removed | |||
| Over voltage | 13.8 ~ 16.2V | 27.6 ~ 32.4V | |
| Protection type: Shut down o/p voltage, re-power on to recover | |||
| Environment | Working temp. | -20 ~ +60ºC | |
| Working humidity | 20 ~ 90% RH non-condensing | ||
| Storage Temp. humidity | -40 ~ +85ºC, 10 ~ 95% RH | ||
| Temp. coefficient | ±0.03%/ºC (0 ~ 50ºC) | ||
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||
| Safety&EMC | Safety standards | Design refer to TUV EN60950-1, EN50178 | |
| Withstand voltage | I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC | ||
| Isolation resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | ||
| EMI conduction&radiation | Compliance to EN55022 (CISPR22) Class B | ||
| Others | Harmonic current | Compliance to EN61000-3-2,-3 | |
| EMS immunity | Compliance to EN61000-4-2, 3, 4, 5; ENV50204, EN55024, Light industry level, criteria A | ||
| MTBF | 364.6K hrs Min. MIL-HDBK-217F (25ºC) | ||
| Dimension | 78×93×56mm(W x H x D） | ||
| Packing | 0.3Kg; 48pcs/15.4KG/1.02CUFT | ||
