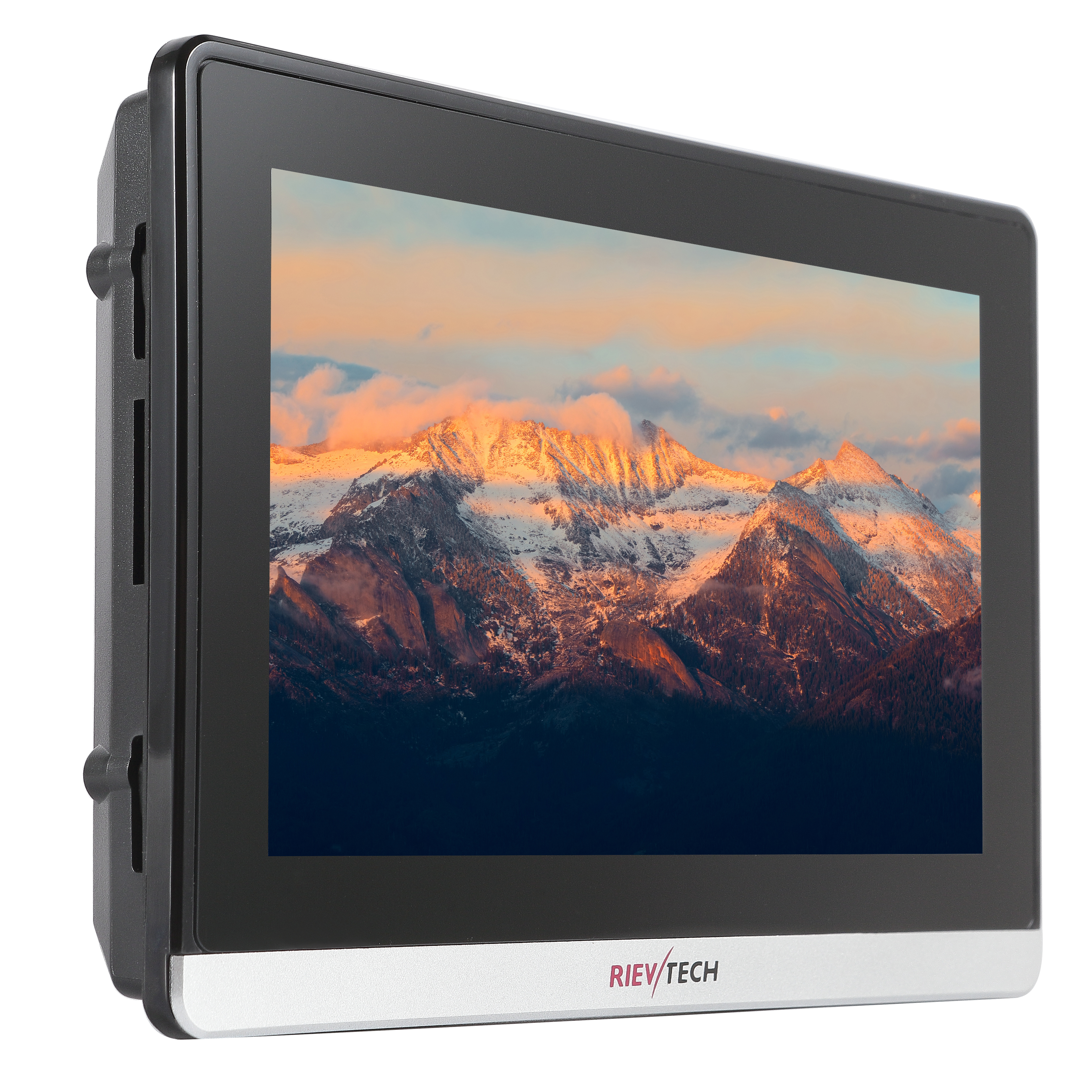

  • RTS007

  • RIEVTECH

Availability:
Quantity:


Highlight:

a.  Projected capacitive, multi-touch Glass+Glass touch screen.

b. high brightness, high contrast ratio, full viewing angle.

c. Industrial isolation power supply, spray coating treatment and applicable to various harsh environment.

d. Photoelectricity isolation communication ports.



General Specification


Model

RTS007

Technical parameter

Display

7”  16:9  TFT LCD

Resolution(WxH):

1024×600

Colors

24-bit color

Brightness

450cd/㎡

Backlight

LED

Backlight Life

50000 hours

Touch Panel

Glass+Glass projective multi-touch capacitive HMI

CPU

600MHz ARM Cortex A8

Memory

128M Flash +128M DDR3

RTC

Built-in

SD Card

Supporting

Ethernet

10M/100M Ethernet

USB port

USB Device 2.0*1,  USB Host 2.0*1

Download project

U-disk/USB Device/Ethernet

COM Port

COM1:RS232/RS485/RS422;

COM2/COM4:RS485;

COM3:RS232

Specifications

Power Consumption

< 6W

Input Power

DC24V, working range DC 9V~28V

Power Protection

Protected from thunder strike and surging

Power down allowed

< 3ms

CE

Complied with EN61000-6-2:2005, EN61000-6-4:2007,CE

RoHS

RoHS, Surge Immunity:&plusmn;1KV, EFT:&plusmn;2KV; ESD:4KV, Air:8KV

Environment Specifications



Operating Temperature:

-10~60C

Storage Temperature:

-20~70C



Operating Humidity:



10~90%RHno condensate





Vibration Endurance:

10~25HzXYZ direction 2G/30 minutes



Others



Degree of Protection:

Front IP65(with NEMA panel),Back IP20



Shell Material:

ABS+PC

Panel Cutout:

178&times;125mm

Dimension:

185.1mm&times;131.1mm&times;30mm

Weight:

About 750g
