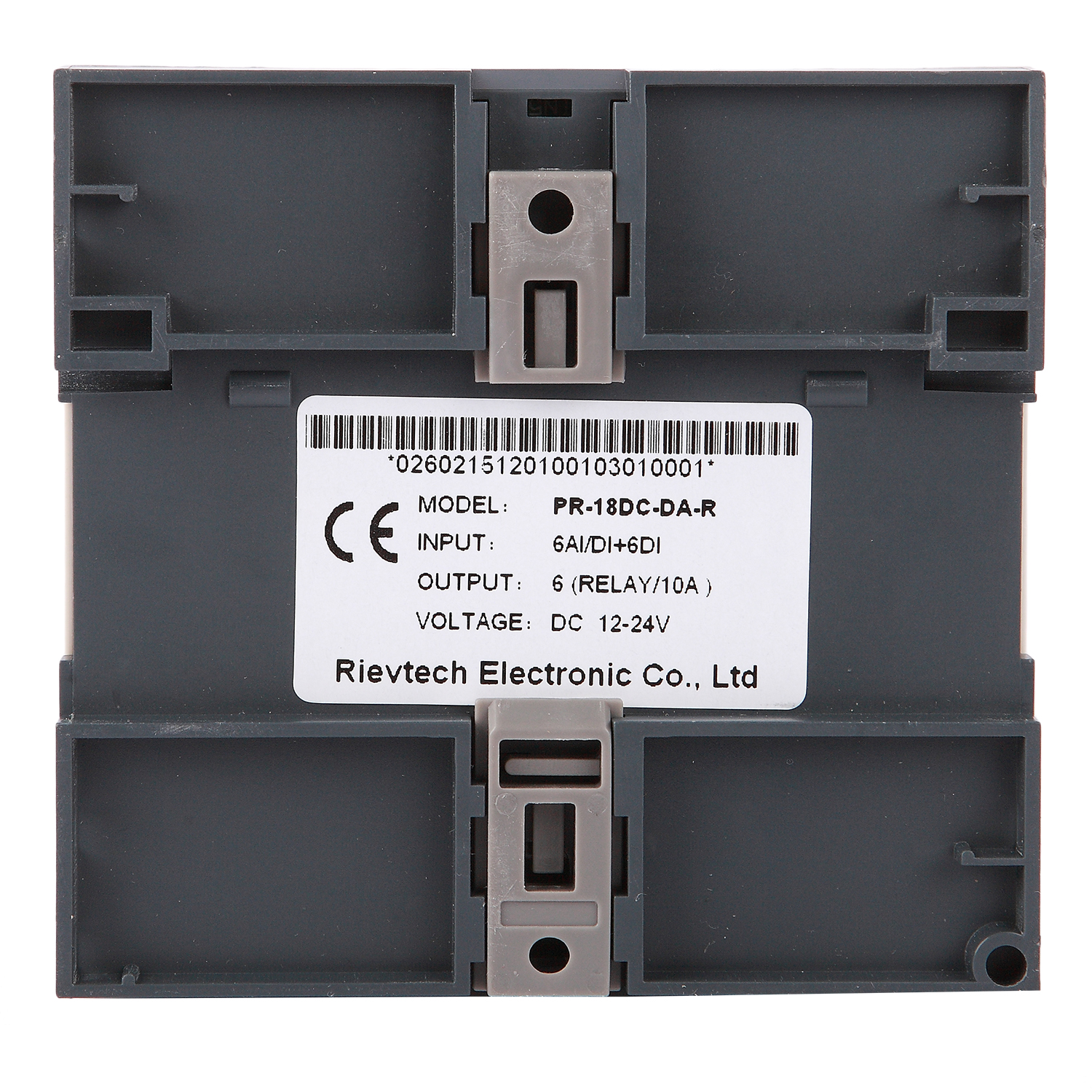

PR-18DC-DA-R

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • RIEVTECH

Availability:
Quantity:
Highlight of PR-18 Series

70 ready-to use functions integrated-no additional devices such as operating hours counter required.
Extremely large program capacity:up to 1024 functions possible.
12 digital inputs(incl 6AI with 12/24V DC)and 6 digital outputs on board.
Flexibly expandable up to 140DI,134DO,72AI,and 32AO.
Display of message texts,actual and set-point values and direct modification of the values on the display(not on pure variants).
Integrated data retentivity-ensures backup of the current values in the event of a power failure.
Customizable Start-up page/screen.
Bool function,multiple timers,counters,PWM,PI controller,Ramp.Analog math supported.
Can be modularly expanded up to 274 I/Os.
230V units can be expanded with analog modules.
Data-logging:Data from the production process can be saves in SD card of the external accessory called ELC-MEMORY to either read it with a PC or evaluate it from the SD card at the workstation.
Extremely simple software
Display of up to 128 messages.
Multiple kinds of registers can be accessed.
Parameters setting menu in LCD panel.
Parameters can be modified in the alarming message.
Modbus RTU/ASCII protocol supported.
Retentive memory capability.
Powerful communication capability(1RS232 port,1 RS485 port and 1 expansion port)
Password protection.
It’s optional for xLogic to act as salve or master in certain Modbus communication network.
Backup at Real Time Clock(RTC) at 25 ℃: 20 days.
Communicate with third party device which supports Modbus network.


PR-18 Series CPU
Model Supply volt Inputs Outputs High-speed count PWM HMI RTC G.W(g)
PR-18AC-R AC110
240V
12 Digital 6relays
(10A)
 None NO YES YES 400g
PR-18DC-DA-R DC12V-DC24V 6 digital
/analog
+6 digital
6 relays
(10A)
 4 routes NO YES YES 400g

PR-18DC-DA-RT DC12V-DC24V 6 digital
/analog
+6 digital
4 relays
(10A)+2 transistor(0.3A)
4 routes YES YES YES 400g



Rievtech products compatibility table .pdf
GENERAL SPECIFICATIONS

Timers  : 1024
Counters  :1024
Function Blocks : 1024
Operation temp. -20℃-55℃
Storage :-40℃-70℃
Protection : IP20(Non-waterproof)
RTC accuracy : MAX ±2S/day
RTC Backup at 25 °C 20 days
Program and settings Backup :10 years
Data Power-off retentivity 10 years
Modify parameters via keypad LCD:  yes
Dimensions : 95*90*55(Unitmm)
Certificate : CE
Installation : 35mm-DIN rail or screw for installation
Expansion capacity:
16
 modules (PR-E-16)
Password protection : 4-digit number password protection or disable program upload function
Communication interface : TTL interface , 1 RS232 port & 1 RS485 port
Communication protocol : Modbus RTU/ASCII




Technical Index

Power supply:
Nominal voltage DC 12-24V
Operating limits  DC 10.8-28.8V
Immunity from micro power cuts  Typ.5 ms
Max. Startup current Max. 0.25A
Max. absorbed power 3.5 W (10.8V dc) ; 4 W (28.8V dc)
Protection against polarity inversions Yes
Input parameters:
Input No 12 ( I1-IC )
Digital input  12 ( I1-IC )
Analogue input  6 ( I1-I6)(0..10V DC)
Digital inputs( I7-IC )
Input voltage  DC0-28.8V
Input signal0  < 5V DC; <1mA
Input signal1  > 8 V DC;>1.7mA
Input current 2.3mA @ 10.8V dc
2.6mA @ 12.0 V dc
5.2 mA @ 24 V dc
6.3 mA @ 28.8 V dc
Response time  to 1 <1 ms to 0 <1 ms
Maximum counting frequency 60k Hz(I9--IC)
Sensor type Contact or 3-wire PNP
Input type Resistive
Isolation between power supply and inputs None
Isolation between inputs None
Inputs used as digital inputs( I1-I6 )
Input voltage  DC0-28.8V
Input signal0  < 5V DC;<0.1mA
Input signal1  > 8 V DC;>0.3mA
Input current  0.4mA @ 10.8V dc
0.5mA @ 12.0 V dc
1.2mA @ 24 V dc
1.5mA @ 28.8 V dc
Response time  to 1 Typ. 1.5 ms to 0 Typ. 1.5 ms
Maximum counting frequency Typ.4 HZ
Sensor type Contact or 3-wire PNP
Input type Resistive
Isolation between power supply and inputs None
Isolation between inputs None
Inputs used as analog inputs( I1-I6 )
Measurement range DC 0---10V
Input impedance Min, 24 ; Max. 72KΩ
Input voltage 28.8 V DC max
Resolution 10bit ,0.01V
Accuracy at 25 °C ± (Max.0.02)V
Accuracy at 55 °C ± (Max.0.04)V
Isolation between analog channel and power supply None
Cable length 10 m max.  shielded and twisted
Output parameters:
Output No. 6 (Q1-Q6)
Output type  Relay output
Max. Allowable Power Force(Resistive) CE: 10A,250V AC/DC30V
UL/CUL:10A,250V AC; 5A, DC28V
Electrical durability Expectancy 10Operations at Rated Resistive Load
Mechanical life 107 Operations at No Load condition
Response time Operate Time : 15 mSec. Max.
Release Time : 10 mSec. Max.
Built-in protections Against short-circuits: None
Against overvoltages and overloads: None
Switch frequency:
Mechanism  10Hz
Resistor/light load  2Hz
Sensitive load  0.5Hz
Other parameters:
Weight Approx.400g

Program language

FBD & Ladder




Dimensions
PR-18 Serires


Wiring


Input/Output

PR_18DC_DA_R_1.jpg   PR_18DC_DA_R_2.jpg
