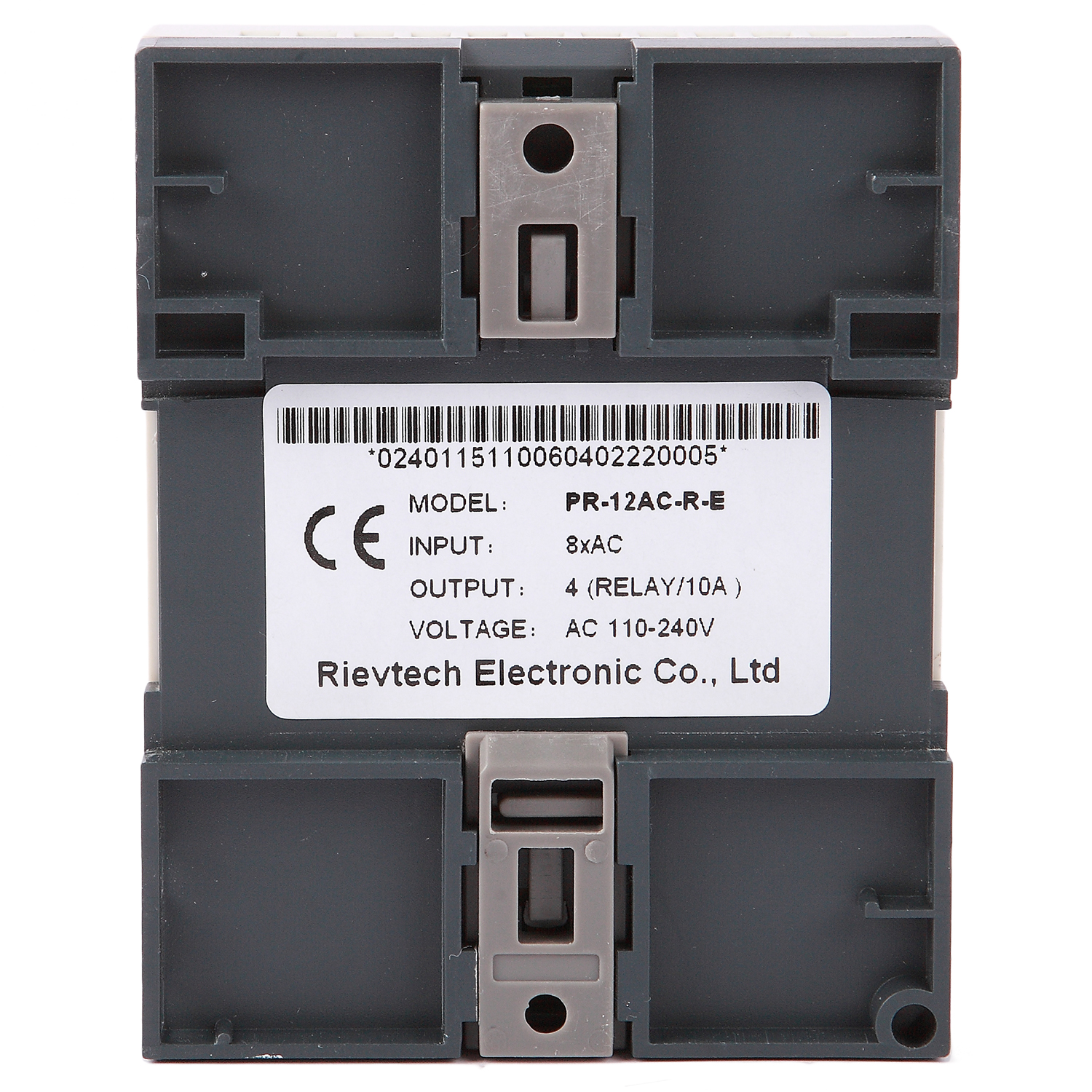

PR-12AC-R-E

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • RIEVTECH

Availability:
Quantity:
Programmable Relay PR-12 Series (Economic Range) Overview
Economy PR-12 range is the entry level model of xLogic Micro PLC family,  able to process up to 64
 function blocks in a single program,  also is the perfect maintenance product, and yet can adequately
 control a new process from the start. Economy PR-12 Series is capable of replacing many of the discrete
 components(such as multiple timers, relays, contactors and counters etc) used in conventional systems,
 opening up a whole new range of possibilities for economical simple control solutions. Economy
 PR-12 Series exclude expansion feature , NO keypad panel , NO PWM output & High Speed pulse
 counting capabilities, but analog inputs also are available, clock with calendar, counters , timers, and
 available in 120/240VAC or 12V/24VDC versions,Easy to configure with drag-and-drop function blocksusing FREE xLogicSoft software.

Note: The following function blocks cannot be applied to Economy PR-12 series

Constant (Cursor key,panel-Key, SMS input/output, SMS message input/output),Timer(Astronomical clock, stopwatch)
Analog (Analog MUX, PI Controller, Analog Ramp, Analog Math, Analog Math error detection,Analog filter,Max/Min,
Average value)),Miscellaneous(Message texts, PWM, Modbus Read, Modbus Write, Memory Write, Memory Read
,Word to bit,bit to word,Device reset,comport status,RH math),App(all are not available).







Economy PR-12 Series CPU
Model Supply volt Inputs Outputs HMI RTC G.W(G)
PR-12AC-R-E AV110-AC240V 8 DI 4 relays(10A) NO YES 300
PR-12DC-DA-R-E DC12V-DC24V 4 DI/AI(I1-I4) + 4 DI (I5-I8) 4 relays(10A) NO YES 300



Rievtech products compatibility table .pdf
GENERAL SPECIFICATIONS

Timers  64
Counters  64
Function Blocks 64
Operation  temp.: -20℃-55℃
Storage :-40℃-70℃
Protection : IP20(Non-waterproof)
RTC accuracy : MAX ±2S/day
RTC Backup at 25 °C 20 days
Program and settings Backup :10 years
Data Power-off retentivity No
Dimensions :  72*90*58  (Unit, mm)
Certificate : CE
Installation : DIN rail or screw for installation
Modify parameters via keypad LCD:no
Password protection : 4-digit number password protection or disable program upload function
Communication interface : 1 Program/RS232 port ( TTL interface)
Communication protocol : Modbus RTU/ASCII



Technical Index
Power supply:
Nominal voltage AC110V-240V
Operating limits  AC85 - 265 V
The main frequency range  47-63Hz
Max. absorbed power 38mA (85V AC);
30mA (265V AC)
Isolation voltage 1780V AC
Protection against polarity inversions Yes
Input parameters:
Input No 8 ( I1-I8 )
Digital input  8 ( I1-I8 )
Analogue input  None
Input voltage AC110-240V
Input signal0  AC0-40V<0.03mA
Input signal1  AC79-240V  >0.06mA
Input Response Time Delay time at 0 to 1
120V AC Typ. 50 ms
240V AC :Typ. 30 ms
Delay time at 1 to 0
120V AC Typ. 90 ms
240V AC :Typ.100 ms
Maximum counting frequency Typ. 4Hz
Sensor type Contact or 3-wire PNP
Isolation between power supply and inputs None
Isolation between inputs None
Protection against polarity inversions Yes
Output parameters:
Output No. 4 (Q1-Q4)
Output type  Relay output
Max. Allowable Power Force(Resistive) CE: 10A,250V AC/DC30V
Electrical durability Expectancy 10Operations at Rated Resistive Load
Mechanical life 107 Operations at No Load condition
Response time Operate Time : 15 mSec. Max.
Release Time : 10 mSec. Max.
Built-in protections Against short-circuits: None
Against overvoltages and overloads: None
Switch frequency:
Mechanism  10Hz
Resistor/light load  2Hz
Sensitive load  0.5Hz
Other parameters:
Weight Approx.300g

Dimensions
PR-12 LED Serires.jpg


Wiring


Input& Output
